50-Ohm Impedance Calculation for PCB Traces
May
50 ohms lies.
Not because the number is wrong, but because too many engineers and buyers treat it like a fixed manufacturing setting: type “50Ω” into the drawing, send Gerbers, wait for boards, and act surprised when the RF module behaves like it has a bad temper. The ugly truth is simpler. A PCB impedance calculator gives an estimate, not a passport through physics.
So why do we still use it?
Because 50-ohm impedance became the practical middle ground for many RF systems: acceptable power handling, acceptable signal loss, and acceptable manufacturability. Not perfect. Useful. There is a difference.
I have seen projects where the designer asked for a 50 ohm PCB trace width but never gave the stack-up. No dielectric height. No material Dk. No copper thickness. No solder mask assumption. Just “50Ω controlled impedance” in a note. That is not engineering. That is a wish.
Why 50 Ohms Became the Default Target
A 50-ohm PCB trace is a transmission line designed so its characteristic impedance is close to 50Ω along the signal path, usually for RF, microwave, antenna, clock, or other high-speed single-ended signals. The actual width depends on the PCB structure, dielectric material, copper thickness, reference plane distance, and whether the trace is microstrip, stripline, or coplanar waveguide.
That sounds clean. It is not.
In coaxial systems, 50Ω became common because it balanced power capacity and signal attenuation. PCB traces inherited that target because RF connectors, antennas, modules, test equipment, and cables already lived there. SMA? 50Ω. Many RF modules? 50Ω. Lab instruments? Usually 50Ω. The PCB had to join the same party.
But here is the trap: the connector says 50Ω, the module says 50Ω, the cable says 50Ω, and the PCB trace still fails because the board stack-up was guessed.
A 50 ohm microstrip trace on FR-4 may be wide. A 50 ohm stripline inside a multilayer board may be narrower. A 50Ω trace on high-Dk RF laminate may shrink again. And if solder mask covers the outer trace, the impedance can drop slightly because the electromagnetic field now sees a different environment.
Small change. Big noise.
For high-frequency work, the better question is not “What is the 50 ohm PCB trace width?” The better question is: “What stack-up, material, copper weight, plane reference, trace geometry, and tolerance can my PCB factory actually hold?”
That is where controlled impedance PCB design starts to become real.
What a PCB Impedance Calculator Actually Calculates
A PCB impedance calculator estimates characteristic impedance based on geometry and material data. For single-ended traces, the common inputs include trace width W, dielectric height H, copper thickness T, dielectric constant Dk or Er, solder mask condition, and trace type such as microstrip or stripline.
The keyword is “estimates.”
I know calculators look precise. Three decimal places feel scientific. But if your FR-4 Dk changes with resin content, glass weave, frequency, and laminate supplier, then pretending the answer is exact is a little ridiculous. We should be honest about that.
A typical RF PCB trace width calculator asks for:
| Input | What It Means | Why It Changes 50Ω Result |
|---|---|---|
| Trace width W | Copper conductor width | Wider trace usually lowers impedance |
| Dielectric height H | Distance from trace to reference plane | Larger height usually raises impedance |
| Copper thickness T | Finished copper thickness after plating | Thicker copper slightly lowers impedance |
| Dielectric constant Dk | Material electrical property | Higher Dk lowers impedance and usually narrows trace |
| Trace structure | Microstrip, stripline, CPWG | Field distribution changes the result |
| Solder mask | Covered or uncovered trace | Mask can lower outer-layer impedance |
| Reference plane | Ground or power plane continuity | Plane gaps damage return path and impedance behavior |
If you only enter W and H, you are not calculating. You are guessing with a nicer interface.
Microstrip vs Stripline: The Factory Difference Buyers Forget
A 50 ohm microstrip trace sits on an outer PCB layer above a reference plane, with air and sometimes solder mask above it. A 50 ohm stripline trace is buried between reference planes, giving better shielding but tighter dependence on lamination thickness, dielectric control, and inner-layer registration.
Microstrip is easier to inspect. Stripline is better protected.
That is the simple version.
The manufacturing version is more annoying. Microstrip traces are affected by plating thickness and solder mask. Stripline traces are affected by press-out, prepreg flow, core thickness, and inner-layer etching. Neither one forgives sloppy stack-up communication.
I prefer microstrip for short RF runs when layout space allows it, especially when test access matters. But for dense multilayer designs, stripline often wins because it reduces radiation and keeps noisy traces away from surface components. In a serious high-frequency 6-layer PCB with ENIG pads, the trace geometry is only one part of the job; dielectric thickness control, copper balance, via transitions, and grounding strategy decide whether the result is stable or just pretty.
What do most failed designs have in common?
They treat the PCB like a flat drawing instead of a 3D electromagnetic structure.
The Hard Truth About 50 Ohm PCB Trace Width
There is no universal 50 ohm PCB trace width.
On a common 4-layer FR-4 board, a 50Ω outer-layer microstrip might land around 5–8 mil if the dielectric height to the plane is thin, or it might be much wider if the plane is farther away. On a 2-layer FR-4 board with a large dielectric height, the trace can become so wide that it becomes annoying to route. On high-Dk RF materials, the same 50Ω target can use a narrower trace.
That is why calculators often disagree.
Not broken. Different assumptions.
Some calculators use closed-form equations. Some use simplified IPC-style models. Some include solder mask. Some ignore roughness. Some assume finished copper; others assume base copper. Some are fine for early design. Others are better for fabrication planning. Field solvers are usually more reliable for complex geometry, but even they need the right material model.
So the real workflow is:
- Pick the signal type and impedance target.
- Build the PCB stack-up first.
- Use a PCB impedance calculator for the first estimate.
- Ask the PCB manufacturer to verify with their process data.
- Lock the controlled impedance table before final routing.
- Use test coupons and TDR measurement when impedance is specified.
Skip step 4 and you are gambling.
Why FR-4 Is Often the Hidden Villain
FR-4 is not one material. It is a family of glass-reinforced epoxy laminates with different resin systems, Tg values, Dk behavior, loss tangent, weave styles, and supplier tolerances. For low-speed logic, that may not matter much. For 50Ω RF or fast edges, it matters quickly.
FR-4 can work. I am not anti-FR-4.
But I am anti-fantasy.
If your design is a TV mainboard, control board, LED controller, power module, or general digital PCB, FR-4 is often the correct economic choice. A FR-4 universal TV mainboard PCB can carry dense interfaces, connectors, control signals, and power distribution without needing expensive RF laminate everywhere. But when the same board includes Wi-Fi, Bluetooth, GNSS, LTE, radar, or high-speed serial lines, the controlled impedance zones must be treated separately.
A cheap stack-up with no impedance planning usually costs more later.
Re-spin cost. Debug time. Delayed shipment. Angry customer. Beautiful.
50 Ohm Microstrip Calculation: The Practical View
A 50 ohm microstrip trace is an outer-layer PCB trace routed above a continuous reference plane, calculated by balancing trace width, copper thickness, dielectric height, and dielectric constant so the signal sees about 50Ω characteristic impedance along the route.
In practice, microstrip is popular because it is easy to route, easy to probe, and common in RF front-end layouts. Antenna feeds, RF module connections, clock lines, and short high-speed single-ended signals often use it.
But microstrip has exposed fields. That means nearby copper, solder mask, components, via stubs, ground clearance, and enclosure metal can affect it.
Here is where I get blunt: many layout files call something “50Ω” while routing it across plane splits, under noisy power sections, through unnecessary vias, and beside other aggressor traces. The calculator was not the problem. The layout was.
For a microstrip, check these details before blaming the factory:
| Item | Good Practice | Bad Practice |
|---|---|---|
| Reference plane | Solid ground under the full trace | Plane split under the RF path |
| Trace width | Fixed width from calculator and factory stack-up | Width changes randomly near pads |
| Via transition | Short, grounded, controlled return path | Long via stubs with no stitching ground |
| Clearance | Enough spacing from copper pours and other traces | RF trace squeezed between noisy routes |
| Solder mask | Included in calculation if covered | Ignored while using tight tolerance |
| Bend style | Smooth bends or mitered corners | Sharp geometry changes everywhere |
The calculator gives the starting width. The layout decides whether that width still means anything.
50 Ohm Stripline Calculation: Cleaner, Harder, Less Forgiving
A 50 ohm stripline trace is an internal PCB trace embedded between reference planes, where the electromagnetic field is mostly contained inside the dielectric. Its impedance depends on trace width, dielectric spacing above and below, copper thickness, Dk, and whether the stripline is symmetric or offset.
Stripline is calmer.
Usually.
It radiates less, couples less to outside objects, and gives more predictable shielding than outer-layer microstrip. That is why engineers like it in dense high-speed multilayer boards. But stripline is also harder to repair, harder to inspect visually, and more dependent on lamination control.

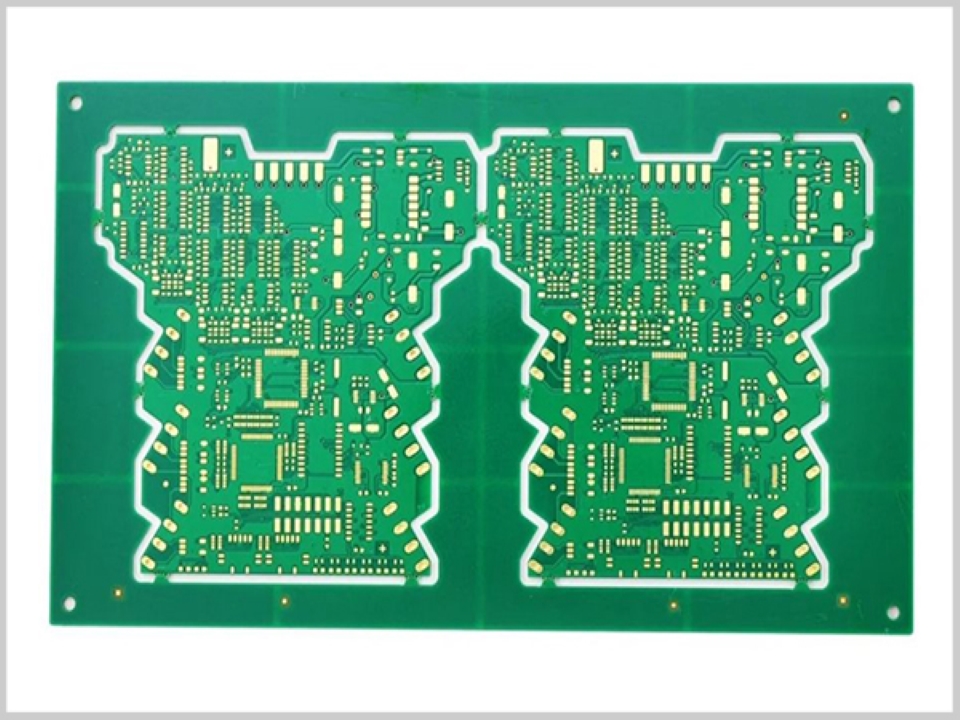

In HDI boards, the problem gets sharper. Microvias, blind vias, buried vias, thin dielectric layers, and compact BGA routing can make impedance work more difficult. If you are routing RF or high-speed traces through dense packaging, an immersion gold HDI multilayer PCB panel is not just about “small vias.” It is about whether the stack-up, registration, plating, and impedance plan are aligned before the first production panel is made.
I have seen a buyer approve a cheaper HDI quote without asking whether the impedance traces were modeled on the actual stack-up. The board arrived. The RF test failed. The supplier got blamed. The drawing had no impedance table.
Who really failed?
Controlled Impedance PCB Design Is a Contract, Not a Note
Controlled impedance PCB design means the PCB trace geometry and stack-up are specified, manufactured, and verified to meet a target impedance such as 50Ω, 90Ω differential, or 100Ω differential within a defined tolerance. It is a fabrication requirement, not a decorative sentence on a PCB drawing.
The drawing should say more than “50Ω controlled impedance.”
It should include:
| Required Data | Example |
|---|---|
| Target impedance | 50Ω single-ended |
| Tolerance | ±10%, or tighter if justified |
| Layer | L1 microstrip, L3 stripline |
| Trace width | Final value after manufacturer review |
| Reference plane | L2 ground, L4 ground |
| Material | FR-4, Rogers, hybrid stack-up, or specified laminate |
| Dielectric height | Confirmed stack-up value |
| Copper thickness | Finished copper, not only base copper |
| Test method | TDR coupon or agreed impedance verification |
| Coupon location | Panel coupon, same layer structure |
And yes, tolerance matters.
If you demand ±5% impedance on a low-cost FR-4 job without giving material control, stack-up control, and test coupon requirements, you are asking the factory to absorb engineering risk for free. Some suppliers will say yes. Some will ship. That does not mean the board is good.
The Solder Mask Problem Nobody Mentions Early Enough
Solder mask can change microstrip impedance.
Not dramatically in every case, but enough to matter when the tolerance is tight. Outer-layer microstrip fields partly travel through air and partly through the dielectric below. Add solder mask over the trace, and now part of the field sees mask material instead of air. The effective dielectric constant increases. Impedance usually drops.
This is why the same 50 ohm microstrip trace can calculate differently depending on whether it is solder-mask covered or exposed.
For RF lines, some engineers remove solder mask from the trace. Others keep it for protection. Both choices can work. But the calculator and factory must know the choice.
Tiny omission. Real consequence.
In flexible PCB and rigid-flex structures, the stack becomes even more sensitive because coverlay, adhesive, polyimide, bend area restrictions, and copper thickness all influence trace behavior. A custom flexible circuit PCB with gold pads is often designed for compact routing and reliable interconnects, but if that flexible path carries high-speed or RF signals, the impedance conversation must happen before the mechanical design is frozen.
What Changes the Result More: Width, Height, Dk, or Copper?
For most 50Ω PCB trace calculations, dielectric height and trace width dominate the first-order result. Dk also matters heavily, especially when comparing FR-4, polyimide, ceramic-filled RF laminate, or hybrid builds. Copper thickness and solder mask usually make smaller but still meaningful changes.
Here is the practical ranking I use during early review:
| Factor | Impact on 50Ω Trace | What Usually Happens |
|---|---|---|
| Dielectric height H | Very high | Thicker dielectric usually needs wider trace |
| Trace width W | Very high | Wider trace lowers impedance |
| Dk / Er | High | Higher Dk narrows the trace for same impedance |
| Copper thickness T | Medium | Thicker copper lowers impedance slightly |
| Solder mask | Low to medium | Usually lowers outer-layer impedance |
| Copper roughness | Medium at high frequency | More relevant for GHz loss than simple impedance |
| Plane continuity | Severe if broken | Calculator becomes meaningless over splits |
| Via transition | Severe if poor | Creates discontinuity even if trace width is correct |
The mistake is looking only at width.
Width is the visible variable, so people obsess over it. But the invisible variables often do the damage.
When a PCB Impedance Calculator Is Enough
A PCB impedance calculator is enough for early design estimation, stack-up discussion, and routing feasibility checks when the signal speed is moderate, the geometry is simple, and the final values will still be reviewed by the PCB manufacturer before fabrication.
That is a reasonable use.
Use the calculator when you need to know whether a 50Ω trace will be 4 mil, 7 mil, 12 mil, or absurdly wide. Use it when deciding whether a 2-layer board can physically support the RF route. Use it when comparing microstrip and stripline. Use it when preparing questions for your PCB supplier.
Do not use it as final proof.
For final production, the factory’s stack-up is the authority. If their actual prepreg thickness, core thickness, copper plating, etch compensation, and laminate source differ from your calculator assumptions, your result changes. This is why impedance-controlled projects should be reviewed with the manufacturer before PCB production.
For complex products such as compact control electronics, the same logic applies beyond rigid boards. A flexible multilayer control PCB with FPC connector may need reliable routing through folded or space-limited structures; if high-speed traces pass through those areas, mechanical convenience and signal integrity must be designed together.
When 50Ω Is the Wrong Target
Not every high-speed trace should be 50Ω.
USB differential pairs are not 50Ω single-ended in the way many beginners think. Ethernet differential pairs, HDMI, LVDS, PCIe, MIPI, and DDR interfaces all have their own impedance targets and routing rules. Some are 90Ω differential. Some are 100Ω differential. Some have single-ended values paired with differential requirements. Some care more about length matching, return path, pair spacing, skew, and connector transitions.
So when I hear “make all fast traces 50Ω,” I get nervous.
That sentence usually means nobody checked the interface specification.
Use 50Ω for RF feeds, antennas, many single-ended clock lines, and systems designed around a 50Ω environment. Do not blindly apply it to every digital bus. A PCB impedance calculator is only useful when the target impedance is correct.
Wrong target. Accurate calculator. Failed design.
The Manufacturing Reality: Etching Tolerance Moves Impedance
A trace drawn at 6 mil may not finish at exactly 6 mil.
Etching compensation, copper thickness, plating, line density, panel position, and process control all affect the final conductor width. This matters because impedance is sensitive to trace width. On fine-line HDI boards, even a small change can move the impedance enough to fail a tight tolerance.
That is why experienced PCB manufacturers adjust artwork based on process capability. They may ask to change your trace width slightly after stack-up calculation. That is not “changing your design.” That is making your design buildable.
For LED, power, and thermal boards, impedance is often not the main issue, but material stack-up still matters. A double-sided aluminum LED PCB panel is driven more by heat dissipation, dielectric thermal performance, and current handling than by RF impedance. The contrast is useful: every PCB type has a dominant physics problem. For RF traces, it is not just copper continuity. It is controlled field behavior.
A Practical 50Ω Calculation Workflow I Actually Trust
Start with the product requirement.
Not the calculator.
First, identify the signal: RF antenna feed, GNSS, Wi-Fi, Bluetooth, LTE, clock, test port, sensor interface, or high-speed single-ended line. Then identify the target impedance and tolerance. Then build the stack-up. Then calculate.
My preferred workflow looks like this:
| Step | Action | Why It Matters |
|---|---|---|
| 1 | Confirm signal standard | Avoid using 50Ω where 90Ω or 100Ω differential is required |
| 2 | Select layer | Outer microstrip or inner stripline changes the formula |
| 3 | Confirm reference plane | No solid plane, no stable impedance |
| 4 | Choose material | FR-4, high-speed FR-4, Rogers, polyimide, or hybrid |
| 5 | Enter real stack-up data | H and Dk must match factory build |
| 6 | Calculate first width | Use PCB impedance calculator for routing estimate |
| 7 | Review with factory | Manufacturer adjusts for actual process |
| 8 | Add impedance table | Lock layer, width, tolerance, target |
| 9 | Use TDR coupon if needed | Verify production result |
| 10 | Control layout transitions | Vias, pads, bends, and plane gaps still matter |
This is slower than guessing.
It is also cheaper than a failed board.
Common Mistakes That Ruin 50Ω Traces
The most common 50Ω PCB trace mistakes are not mathematical errors; they are communication and layout errors. Designers forget the reference plane, buyers omit stack-up data, engineers route across plane gaps, and purchasing teams compare quotes without checking whether controlled impedance testing is included.
Here are the repeat offenders:
| Mistake | Why It Fails |
|---|---|
| Asking for 50Ω without stack-up | The factory cannot calculate accurately without dielectric data |
| Using online calculator values directly | The calculator may not match real material and process conditions |
| Routing over split planes | Return current path is broken |
| Changing trace width near pads | Creates impedance discontinuity |
| Ignoring via transitions | Vias add inductance and discontinuity |
| Forgetting solder mask effect | Outer microstrip impedance may shift |
| Mixing RF and noisy power routing | Coupling and EMI increase |
| No test coupon | No practical verification method |
| Comparing only PCB price | Controlled impedance work may not be included |
I will say the unpopular part: some RF failures are purchased, not designed.
The buyer pushes for the cheapest board. The engineer does not freeze the stack-up. The factory makes what was documented. The prototype fails. Everyone acts shocked.
FAQ
What is a 50-ohm PCB trace?
A 50-ohm PCB trace is a controlled transmission line designed so its characteristic impedance stays close to 50Ω along the signal path, usually for RF, antenna, microwave, clock, or high-speed single-ended signals where matching between source, PCB trace, connector, cable, and load reduces reflection and signal loss.
In simple words, the trace is not just a copper path. It works together with the dielectric material and reference plane. If the geometry changes, the impedance changes. That is why a 50 ohm PCB trace width must be calculated from the stack-up, not copied from another design.
How do you calculate 50 ohm PCB trace width?
You calculate 50 ohm PCB trace width by selecting the trace structure, entering dielectric height, dielectric constant, copper thickness, solder mask condition, and target impedance into a PCB impedance calculator, then confirming the result with the PCB manufacturer’s actual stack-up and process capability before production.
For early design, this gives a useful routing width. For final production, the manufacturer should verify it because real FR-4, prepreg, copper plating, and etching tolerance may differ from calculator assumptions. The calculator starts the conversation; it does not replace fabrication review.
Is microstrip or stripline better for 50-ohm impedance?
Microstrip is better for simple access, short RF routes, easier probing, and lower-cost outer-layer routing, while stripline is better for shielding, lower radiation, and dense multilayer high-speed designs where the signal benefits from being buried between reference planes.
The best choice depends on product layout, frequency, board thickness, layer count, EMI goals, and test needs. Microstrip is often easier during debugging. Stripline is often cleaner in dense systems. The wrong choice is picking one before the stack-up and return path are understood.
Can I use FR-4 for 50-ohm RF traces?
FR-4 can be used for many 50-ohm RF traces when frequency, loss budget, trace length, and tolerance are moderate, but it becomes less predictable at higher frequencies because dielectric constant, loss tangent, glass weave, resin content, and laminate variation affect impedance and insertion loss.
For short Wi-Fi, Bluetooth, GNSS, or general RF module connections, FR-4 may be acceptable if the stack-up is controlled. For higher-frequency, longer-path, low-loss, or tight-tolerance RF circuits, high-frequency laminates or hybrid stack-ups may be safer.
Why does my PCB impedance calculator result differ from the factory result?
Your PCB impedance calculator result differs from the factory result because the calculator uses assumed material and geometry values, while the factory calculates with actual laminate options, prepreg thickness, copper plating, etch compensation, solder mask behavior, and production tolerance.
This difference is normal. A calculator may say 6.2 mil, while the factory recommends 6.6 mil or 5.8 mil after checking its stack-up. That is not necessarily a conflict. It may be the difference between theoretical layout and manufacturable impedance control.
Do I need impedance testing for every 50-ohm PCB?
You need impedance testing when the 50Ω trace affects RF performance, compliance, signal integrity, repeatability, or customer acceptance, especially in production orders where controlled impedance is part of the drawing or purchase specification.
For low-risk prototypes, some teams only use calculated impedance. For serious RF, telecom, automotive, medical, industrial, or high-speed products, TDR coupons and controlled impedance reports are safer. If impedance is important enough to specify, it is usually important enough to verify.
Conclusion
A 50-ohm impedance calculation is not a number hunt.
It is a manufacturing agreement between design intent and factory reality. The PCB impedance calculator helps estimate the geometry, but the final answer depends on material, copper, dielectric height, reference planes, solder mask, etching, lamination, and test method.
So here is my hard advice: before sending a 50Ω PCB project for quotation, send the Gerber files, stack-up target, impedance table, material preference, copper weight, tolerance, and test requirement together. If you do not know the stack-up yet, ask the manufacturer to help define it before routing is locked.
At MCHDIPCB, we support PCB and PCBA projects from prototype to volume production, including high-frequency PCB, HDI PCB, FR-4 PCB, flexible PCB, rigid-flex PCB, aluminum PCB, and controlled impedance requirements. If your design needs 50Ω traces, do not just ask for a price. Send the stack-up question first. That is where the real engineering starts.
