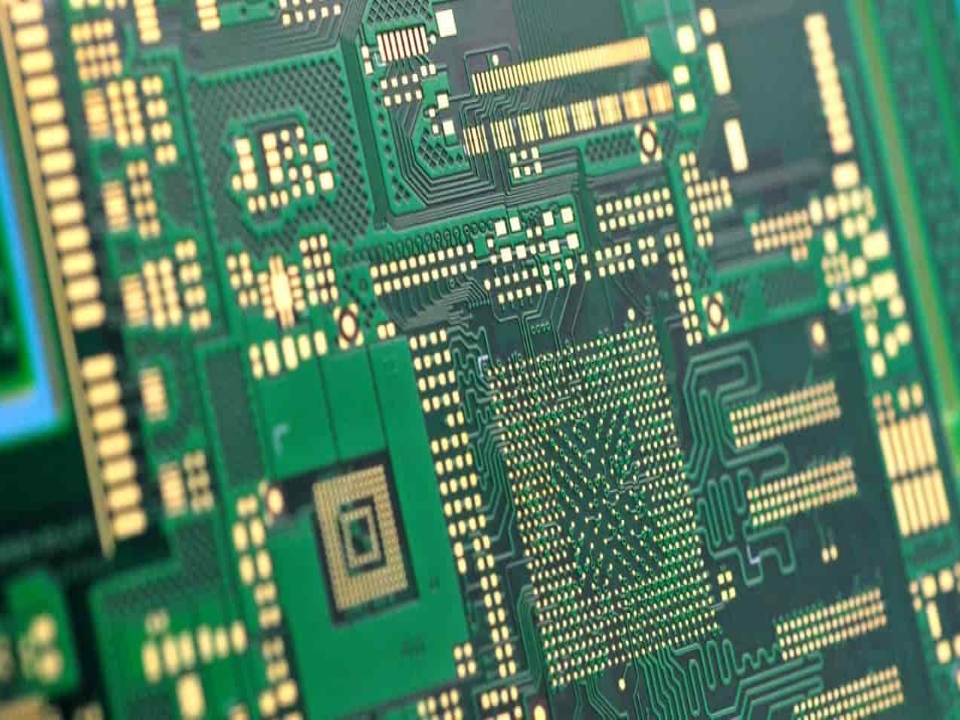

Setup vs Run Costs: Assembly Pricing Explained
Jun
The ugly truth about PCB assembly cost is this: most buyers ask for a unit price before they understand what the factory is pricing.
Bad move.
A PCBA quote is not one number; it is a small pile of labor, tooling, machine time, material handling, inspection, failure risk, solder paste, stencil work, programming, packaging, and the silent cost of stopping a production line for a small order that may never repeat. So when someone says, “Why is my 20-piece prototype so expensive?” I usually know the answer before opening the BOM.
Because the line does not care about your quantity.
What Setup Cost Really Means in PCB Assembly Pricing
Setup cost in PCB assembly is the fixed preparation cost paid before volume production starts, including stencil preparation, SMT programming, feeder loading, first article inspection, engineering review, solder paste setup, line changeover, and process confirmation.
That sentence sounds boring. It is not.
Setup cost is where the factory protects itself from chaos. Every new job must be checked. Gerber files need review. The BOM must match real parts, not fantasy parts copied from an old Excel file. The pick-and-place program must be prepared. Feeders must be loaded. The stencil must match pad design. The first assembled PCB must be inspected before the rest move forward.
This is why a turnkey SMT PCB prototype assembly project can feel “expensive” at low quantity but reasonable after the same setup is spread across more units.
The buyer sees 20 pieces.
The factory sees one full production event.
What Run Cost Means After the Line Starts Moving
PCB assembly run cost is the repeated cost for each assembled unit, including SMT placement time, through-hole labor, soldering, AOI inspection, X-ray if needed, functional testing, packaging, rework allowance, and production yield loss.
This is the part most buyers understand better because it behaves like normal pricing. More units usually mean lower per-unit cost. Not always. But usually.
If your PCB has 18 components, all 0603 resistors and SOT-23 transistors, the run cost may drop fast after setup. If your PCB has 420 components, 0.4 mm pitch BGAs, shield cans, hand-soldered connectors, conformal coating, and functional testing, the curve is not so friendly.
Quantity helps.
Complexity bites back.
A custom control PCB assembly with an SD slot is a good example of why “component count” alone is not enough. An MCU, SD card socket, terminal blocks, LEDs, and connectors create different process pressures: SMT placement, mechanical alignment, possible manual soldering, and inspection around the card slot.
So yes, quantity matters. But build structure matters more.
The Hard Split: Fixed Cost vs Variable Cost
Here is the clean way to think about PCBA quote breakdown.
| Cost Item | Setup Cost or Run Cost? | What It Usually Covers | Why Buyers Misread It |
|---|---|---|---|
| SMT programming | Setup cost | Pick-and-place data, rotation check, centroid file correction | It feels like “software,” but it takes real engineering time |
| Stencil | Setup cost | Stainless steel stencil for solder paste printing | Small orders still need it unless hand assembly is used |
| Feeder loading | Setup cost | Loading reels, tubes, trays, and verifying part positions | A 20-piece order can need the same loading work as 2,000 pieces |
| First article inspection | Setup cost | Checking the first assembled PCB before continuing | Prevents mass defects, but adds time before production |
| SMT placement | Run cost | Machine placement time per PCB | Drops with volume, but only within machine limits |
| Through-hole soldering | Run cost | Manual insertion, wave soldering, selective soldering | Labor-heavy, less scalable than SMT |
| AOI inspection | Run cost | Automated optical inspection after SMT | More components usually mean more inspection time |
| X-ray inspection | Run cost / special cost | BGA, QFN, hidden solder joint inspection | Often quoted separately because machine time is limited |
| Functional test | Run cost / setup cost | Test fixture, programming, test labor | Fixture is setup; test time is run cost |
| Packaging | Run cost | ESD bags, trays, labels, cartons | Small cost, but not zero |
The mistake is simple: buyers treat setup cost like a tax. I treat it like insurance.
Why? Because bad setup makes cheap assembly expensive later.
Why 10 Pieces Can Cost Almost the Same to Prepare as 1,000 Pieces
Here is the part nobody likes.
For a factory, a 10-piece prototype may still need Gerber review, BOM checking, stencil preparation, SMT programming, feeder loading, solder paste control, first article inspection, AOI setup, and final packaging. That whole chain happens before the factory knows whether the buyer will ever place a second order.
So what happens?
The setup cost gets pushed into a tiny quantity.
If setup is $250 and run cost is $3.20 per PCB, the math looks painful at low quantity:
| Quantity | Setup Cost | Run Cost Per PCB | Total Cost | Effective Cost Per PCB |
|---|---|---|---|---|
| 10 pcs | $250 | $3.20 | $282 | $28.20 |
| 50 pcs | $250 | $3.20 | $410 | $8.20 |
| 200 pcs | $250 | $3.20 | $890 | $4.45 |
| 1,000 pcs | $250 | $3.20 | $3,450 | $3.45 |
Same PCB. Same factory. Same setup.
Different truth.
This is why “how to calculate PCB assembly cost” should never start with unit price. Start with fixed cost, then divide it across quantity, then add real run cost.

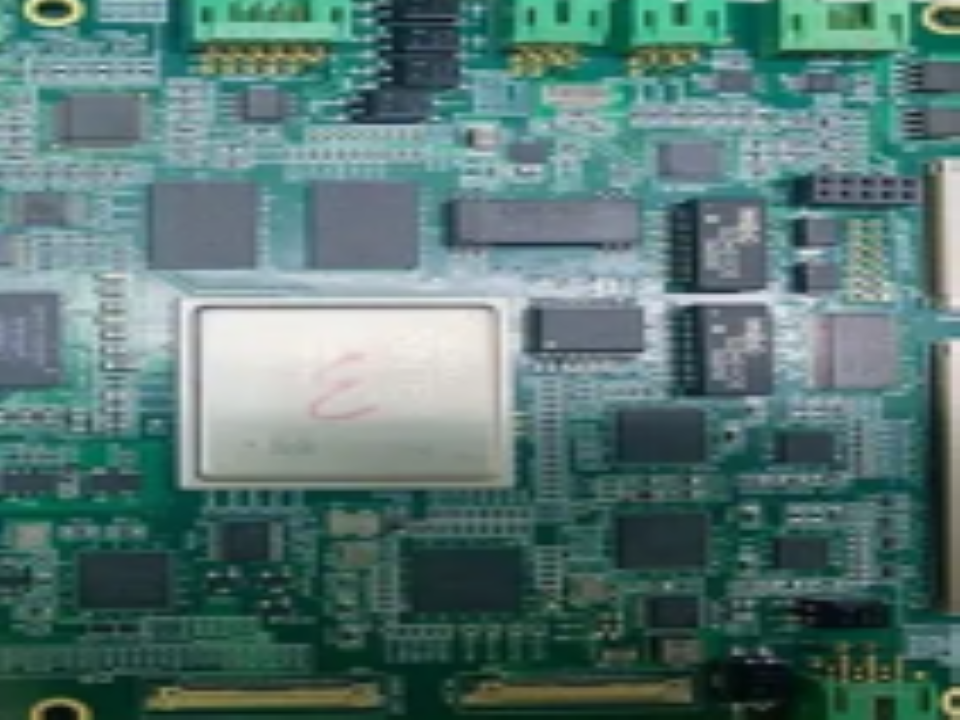

SMT Assembly Cost: The Machine Is Fast, But the Preparation Is Not Free
SMT assembly cost is often lower than hand assembly at scale because pick-and-place machines can place thousands of components per hour, but the preparation before that speed begins is where small orders lose their price advantage.
Fast machines still need slow humans.
And those humans must catch ugly things: wrong polarity, missing pin 1 marks, resistor arrays with unclear orientation, QFN thermal pad issues, 0201 part tombstoning risk, BGA moisture sensitivity, LED direction mistakes, and BOM lines that say “or equivalent” without a real approved manufacturer part number.
I have seen buyers fight over $0.01 on placement cost while sending a BOM with three obsolete ICs and one connector available only in 16-week lead time. That is not cost control. That is theater.
For high-current or heat-heavy electronics, the assembly process also changes. A High-Tg mainboard PCB assembly with large copper areas may need closer attention to thermal mass, solder wetting, and reflow profile stability. Large copper pours do not heat like tiny signal boards. They absorb energy, distort solder behavior, and punish lazy process settings.
Cheap quote? Maybe.
Stable yield? Different question.
Assembly Labor Cost Is Not Just Hand Soldering
Assembly labor cost includes more than manual soldering; it also includes engineering review, material kitting, line setup, inspection, rework, test handling, packaging, and communication time when files or specifications are incomplete.
That matters because many buyers think labor only appears when someone touches a soldering iron.
No.
Labor appears when the BOM has missing package codes. Labor appears when the CPL file rotation is wrong. Labor appears when the buyer says “use standard connector” and forgets that there are 300 “standard” connectors. Labor appears when functional testing requires a custom cable that nobody mentioned during quoting.
This is why a clean RFQ can be cheaper without changing the PCB at all.
Send Gerber. Send BOM. Send CPL/XY. Send assembly drawing. Send test requirements. Send sample photos if this is a replacement order. Send acceptable substitute rules. Send target annual quantity.
Factories price uncertainty. Always.
The Hidden Cost of BOM Sourcing
BOM sourcing is where many PCBA quotes get dirty.
The buyer may compare two suppliers and point out that Supplier A’s price is 18% lower. However, when preparing its quote, Supplier A may have used generic substitutes, overlooked the production date, ignored lifecycle risks, or used local substitute parts without obtaining explicit approval. Supplier B quoted exact MPNs from authorized channels. The quote is not the same quote.
Not even close.
For turnkey PCB assembly, sourcing can affect both setup and run cost. Setup increases when engineering must validate substitutes or check availability. Run cost increases when parts are expensive, moisture-sensitive, tray-packed, manually handled, or bought in minimum package quantities.
Small quantity hurts here too.
If your order needs 37 pieces of an IC sold only in a full reel of 3,000, someone pays for the imbalance. Maybe the factory absorbs part of it. Maybe it becomes a material handling fee. Maybe it appears as a higher unit price. But it exists.
And pretending it does not exist is how buyers end up comparing fake numbers.
Why Testing Can Change the Quote More Than Placement
Testing is the most underestimated part of PCB assembly pricing.
AOI is normal. X-ray is special. ICT needs fixture planning. Functional testing needs a test method, software, cables, power input, pass/fail limits, and sometimes trained operators who know what the product is supposed to do.
A simple LED lighting PCB may need visual and power-on testing. A control PCBA for industrial equipment may need voltage checks, relay action checks, communication tests, firmware loading, and serial number recording.

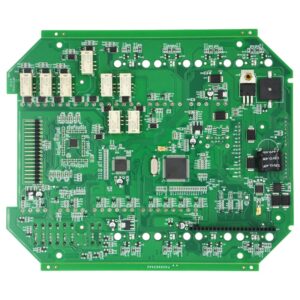

That is why an IATF16949 OEM control PCB assembly manufacturer is not just selling solder joints. It is selling traceability, repeatability, inspection discipline, and process control for higher-risk applications.
Hard truth: if your product can fail in the field and cost you a customer, testing is not expensive. Skipping testing is expensive.
Rigid-Flex, FPC, and Metal Core PCBs Do Not Price Like Plain FR-4
Some buyers want a universal SMT assembly cost model.
I get why. It feels clean.
However, a rigid FR-4 control PCB, a flexible FPC, a rigid-flex PCB, and a metal-core PCB do not behave the same way during assembly. The base material changes handling. The process window changes. The risk changes.

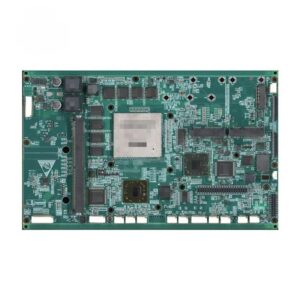

A rigid-flex PCB assembly with round PCB design may need fixture support to prevent movement during SMT. A flexible FPC circuit board assembly may require carrier panels, controlled handling, and careful connector alignment. A metal core PCB assembly for embedded smart hardware may need stronger thermal control during soldering because aluminum and copper-core structures pull heat differently from FR-4.
The quote changes because physics changes.
Not because the factory is guessing.
A Practical PCBA Quote Formula
Below is the formula I use to explain PCB assembly costs to buyers:
Total PCBA cost = setup cost + PCB fabrication cost + component cost + SMT/THT run cost + testing cost + packaging cost + risk buffer
Then:
Effective unit cost = total PCBA cost ÷ quantity
Simple formula. Messy inputs.
A good PCBA quote should show enough detail for the buyer to understand the cost drivers. It does not always need to expose every internal factory number, but it should make the structure visible: setup, PCB, components, assembly, testing, lead time, and special requirements.
If a quote only gives one line, ask questions.
If the supplier refuses to explain the difference between the setup fee and the operating fee, please proceed with caution.
If a buyer refuses to provide complete documentation but still insists on a firm price, the supplier should exercise caution.
Bad data creates bad quotes.
What Actually Reduces PCB Assembly Cost
The best way to reduce PCB assembly cost is not bullying the supplier for a lower number. It is removing avoidable work from the build.
Use common package sizes when possible: 0603, 0805, SOT-23, SOIC, QFN with sane pitch. Avoid unnecessary 0201 parts unless board density truly demands it. Keep polarity marks clear. Confirm connector availability before layout lock. Reduce odd manual soldering steps. Keep test requirements practical. Give the factory annual forecast if the project will repeat.
And please, clean the BOM.
A dirty BOM is a tax.
A clean BOM is leverage.
Setup Cost vs Run Cost: Buyer Decision Guide
| Buyer Situation | What to Watch | Better Strategy |
|---|---|---|
| 5–20 prototype pcs | Setup cost dominates | Accept higher unit cost; focus on speed and DFM feedback |
| 50–200 pilot pcs | Setup still matters, but yield starts to matter more | Confirm test plan, substitutes, and process risks early |
| 500–2,000 pcs | Run cost becomes more visible | Optimize placement, packaging, and inspection flow |
| 5,000+ pcs | Component sourcing and yield drive real savings | Negotiate BOM cost, forecast, and production planning |
| High-mix low-volume builds | Changeover cost is painful | Group similar builds and standardize parts |
| Automotive or control electronics | Traceability and testing cost more | Pay for process control instead of chasing the cheapest quote |
| FPC / rigid-flex / metal core | Handling and thermal behavior affect yield | Use fixtures, panel planning, and early DFM review |
FAQ
What is setup cost in PCB assembly?
Setup cost in PCB assembly is the fixed preparation cost required before production begins, including SMT programming, stencil preparation, feeder loading, engineering review, first article inspection, solder paste setup, and line changeover work that must happen whether the order is 10 pieces or 10,000 pieces.
This cost is painful for prototypes because it is divided across a small quantity. For repeat production, the same setup becomes less visible because it spreads across more units. Buyers should not judge setup cost alone; they should calculate the final effective unit cost after setup and run cost are combined.
What is PCB assembly run cost?
PCB assembly run cost is the repeated production cost charged per assembled PCB, covering SMT placement, through-hole labor, soldering, AOI inspection, X-ray if required, functional testing, packaging, rework allowance, and normal yield loss during the production process.
Run cost usually decreases when quantity increases, but it does not disappear. Dense BGAs, manual connectors, odd-shaped PCBs, conformal coating, firmware loading, and functional testing can keep run cost high even at larger volume. The real question is not only “how many pieces,” but “how hard is each piece to build?”
Why is prototype PCB assembly so expensive?
Prototype PCB assembly is expensive because fixed setup work is spread across very few units, while the factory still needs engineering review, stencil preparation, SMT programming, material kitting, feeder loading, first article inspection, and quality checks before even a small batch can be completed.
A 10-piece prototype may require almost the same preparation as a 1,000-piece job. That is why the unit price looks high. For prototypes, the buyer is not only paying for assembled PCBs; the buyer is paying for process preparation, risk checking, and fast learning before volume production.
How do I calculate PCB assembly cost?
PCB assembly cost can be calculated by adding setup cost, PCB fabrication cost, component cost, SMT and through-hole assembly cost, testing cost, packaging cost, and risk buffer, then dividing the total by order quantity to get the effective unit cost.
The key is separating fixed and variable costs. Setup cost stays mostly fixed. Run cost grows with quantity. Component cost depends on MPN selection, packaging quantity, availability, and substitute rules. Testing cost depends on inspection depth. A clean RFQ makes this calculation much more accurate.
How can I reduce SMT assembly cost?
SMT assembly cost can be reduced by cleaning the BOM, using common component packages, avoiding unnecessary tiny parts, reducing manual soldering, confirming polarity marks, improving panel design, simplifying testing, and giving the factory accurate quantity forecasts before quoting.
The biggest savings often come before production starts. A design with stable 0603/0805 passives, clear silkscreen, standard reels, practical test points, and available connectors is easier to quote and easier to build. A messy design creates hidden labor, rework risk, and higher inspection time.
Is the cheapest PCBA quote usually the best choice?
The cheapest PCBA quote is usually not the best choice if it hides setup cost, uses unclear component substitutes, skips testing, ignores yield risk, or gives a low assembly number without explaining BOM sourcing, inspection, lead time, and quality control assumptions.
A good quote should survive technical questions. Ask what is included: stencil, programming, AOI, X-ray, functional test, packaging, component sourcing, substitute approval, and rework policy. If the supplier cannot explain the quote, the low price may simply be risk moved from their side to your side.
Final Word: Stop Asking Only for Unit Price
Unit price is not the truth.
PCB assembly cost becomes clear only when setup cost and run cost are separated. Setup cost tells you what it takes to prepare the job. Run cost tells you what it takes to repeat the job. BOM sourcing tells you whether the quote is real. Testing tells you whether the product can survive outside the factory.
So when you request a PCBA quote, send the full package: Gerber, BOM, CPL/XY file, assembly drawing, test requirements, target quantity, annual forecast, and lead time expectation.
