OEM High-Frequency Refrigerator Control PCB Panel

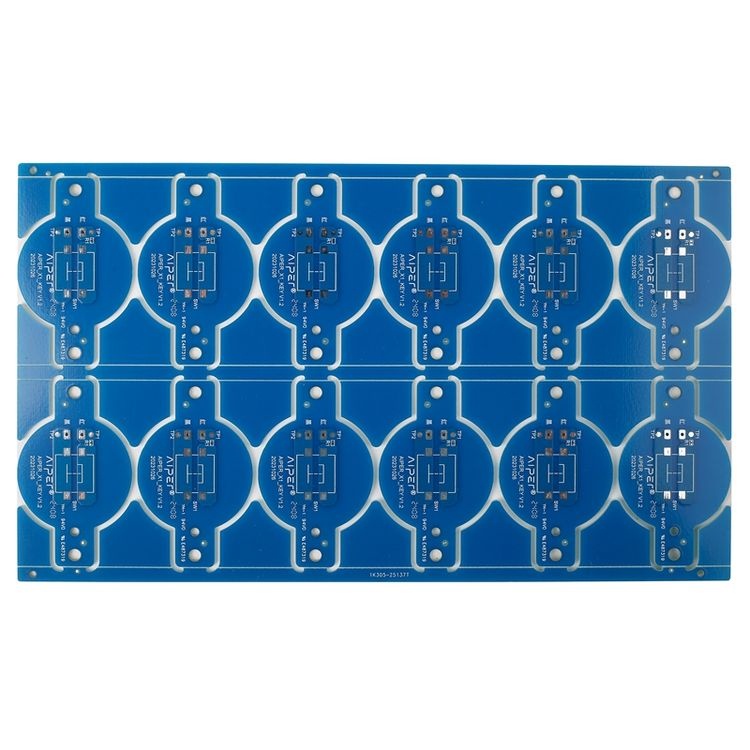

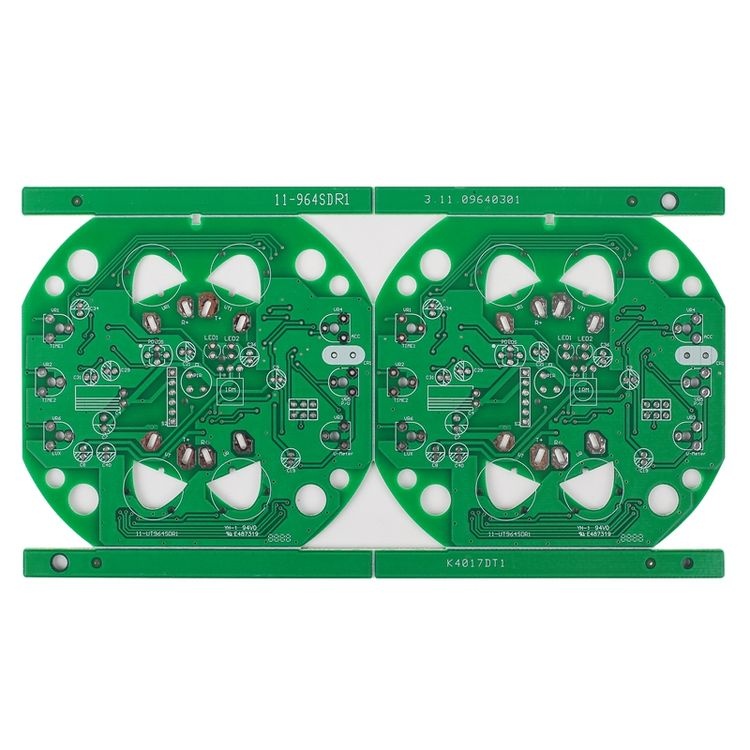

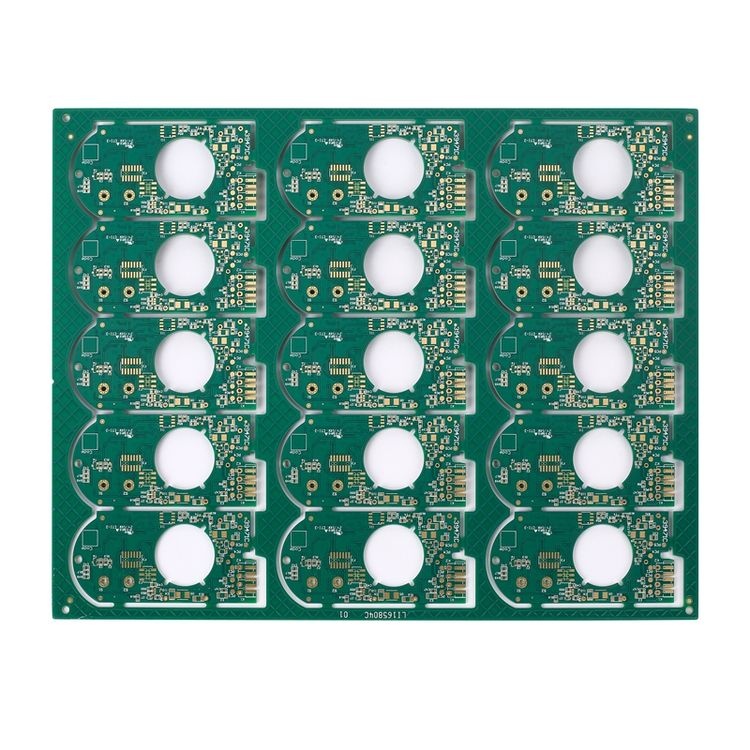

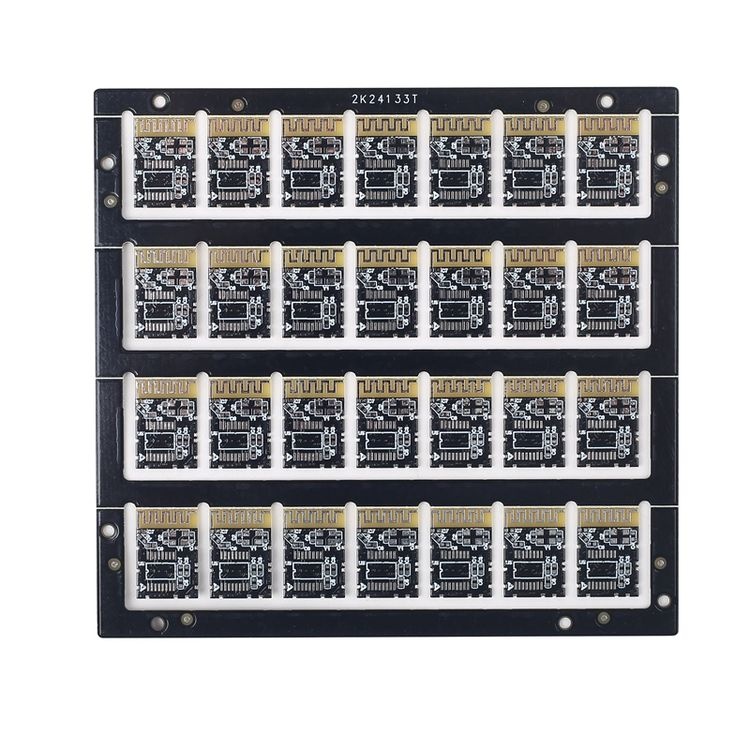

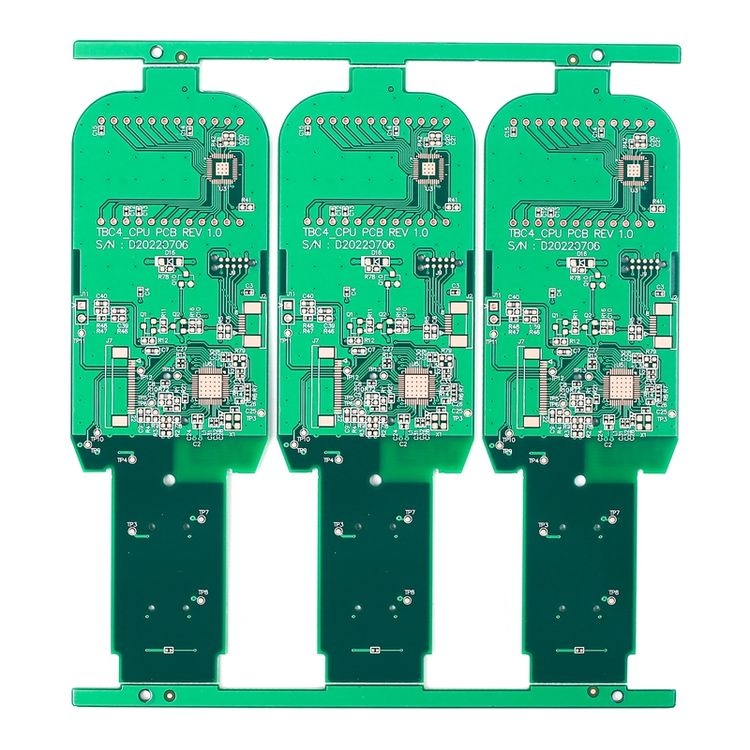

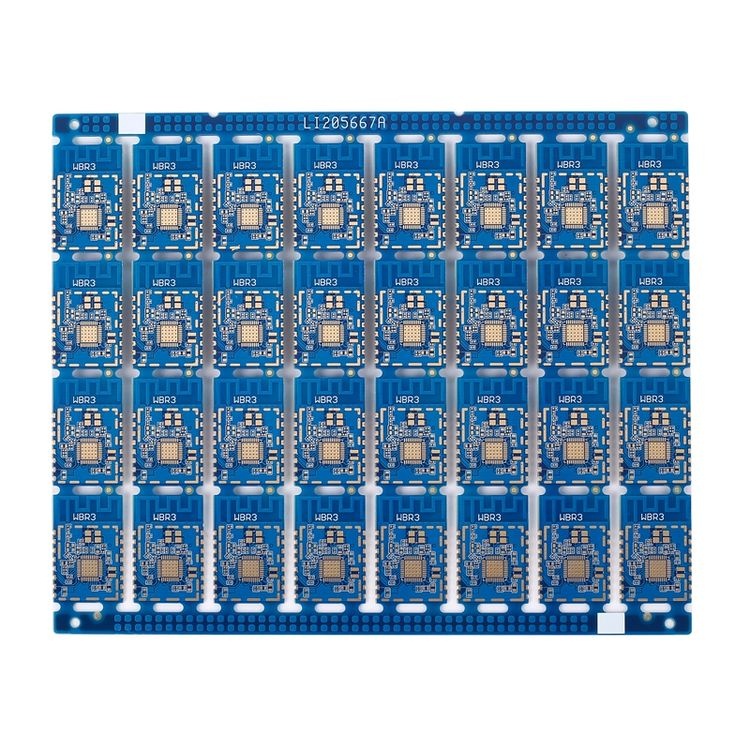

the uploaded images show multi-up pcb panels with many identical control modules, a layout commonly used for appliance electronics where production efficiency and consistency are critical. panelization reduces handling damage, improves placement accuracy during smt, and helps factories run higher throughput with predictable yields. for refrigerator control systems, the design typically needs stable power regulation, sensor and relay interfaces, and clean signal routing that stays reliable across temperature cycling and long operating hours. as a b2b oem partner, we support dfm review, material and copper selection, and process controls that keep solder joints and fine-pitch pads dependable in volume. quality steps can include aoi inspection, electrical testing, and functional test programming aligned to your control logic so each board ships verified, not just visually checked. the result is a refrigerator control pcb that is easier to scale, easier to trace, and built to perform consistently in real appliance conditions.
