OEM HDI Rigid-Flex PCB Design With Custom Rigid-Flex FPC

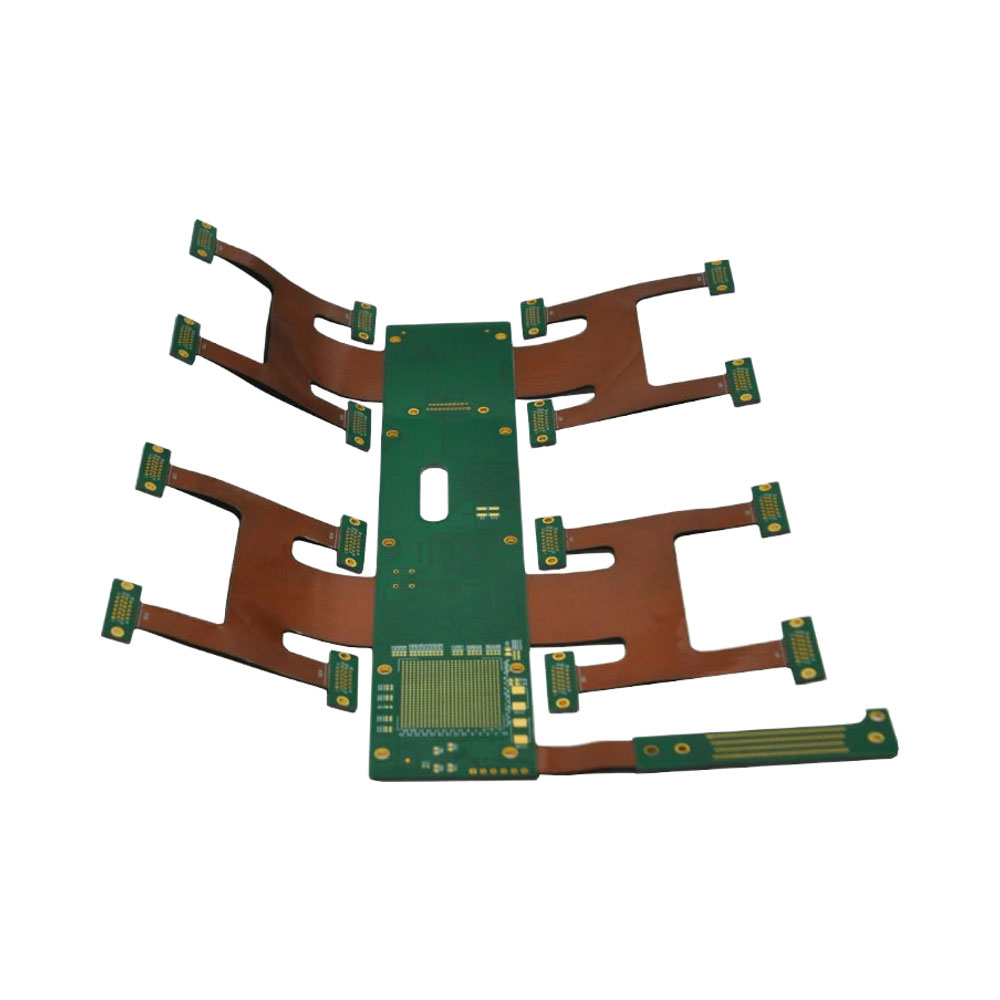

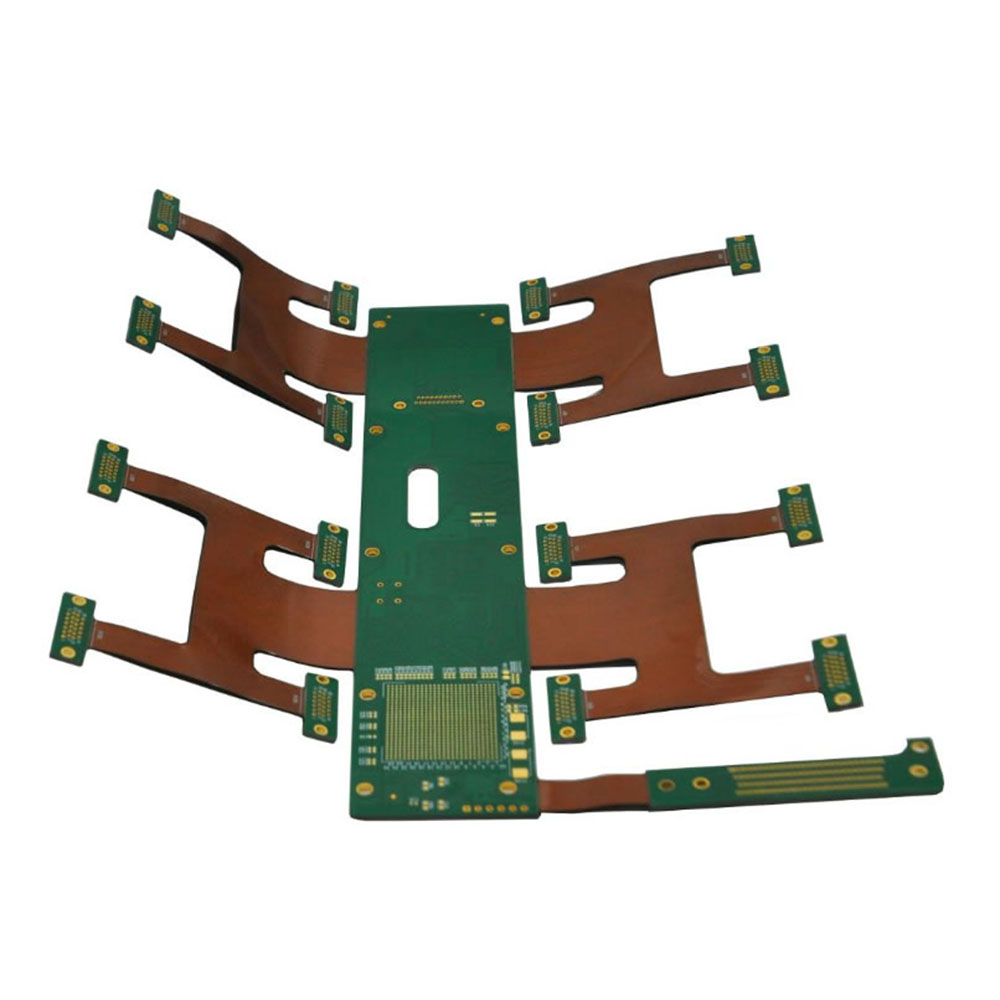

the uploaded design shows a classic rigid-flex architecture: a rigid main section for dense components and shielding, paired with flexible “arms” that route signals to multiple end connectors. this layout reduces bulky wiring harnesses, improves assembly repeatability, and keeps the final product slimmer and more reliable under vibration or repeated handling. as a b2b oem partner, we support hdi build requirements such as microvias, fine-line traces, controlled impedance, and bend-radius rules so the flex sections stay durable across the product life cycle. manufacturing can include coverlay and stiffeners where needed, plus a full pcb workflow—smt placement, aoi, x-ray for hidden joints, electrical test, and functional testing aligned to your interface map. if you need extra protection, we can add conformal coating options and traceability labeling to help with field support and quality audits.
