Multilayer Rigid-Flex FPC PCB With Gold Rings OEM Supplier

this rigid-flex design is made for products that need to “bend without breaking” while still holding precise component placement. the rigid sections provide a solid home for fine-pitch smt parts and dense routing, while the flexible tails act like a built-in harness—reducing connectors, saving space, and improving shock performance compared with separate cable assemblies.

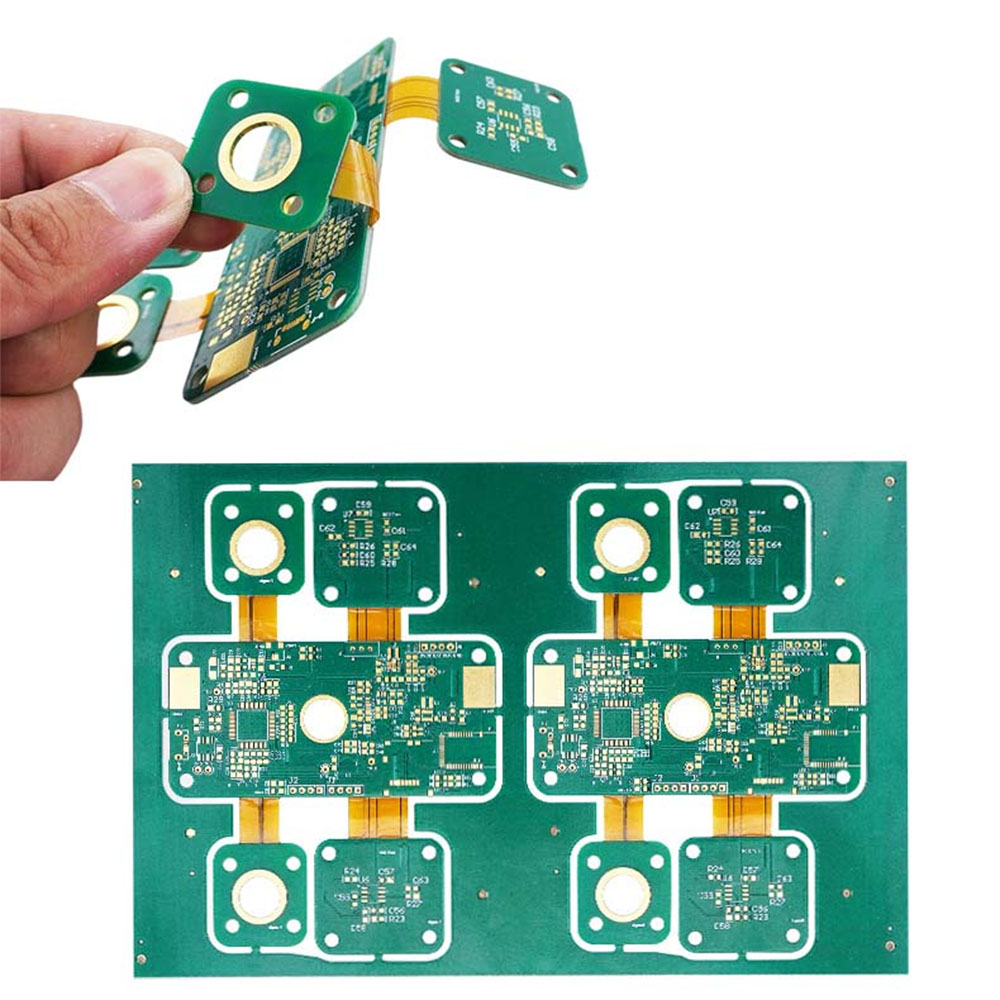

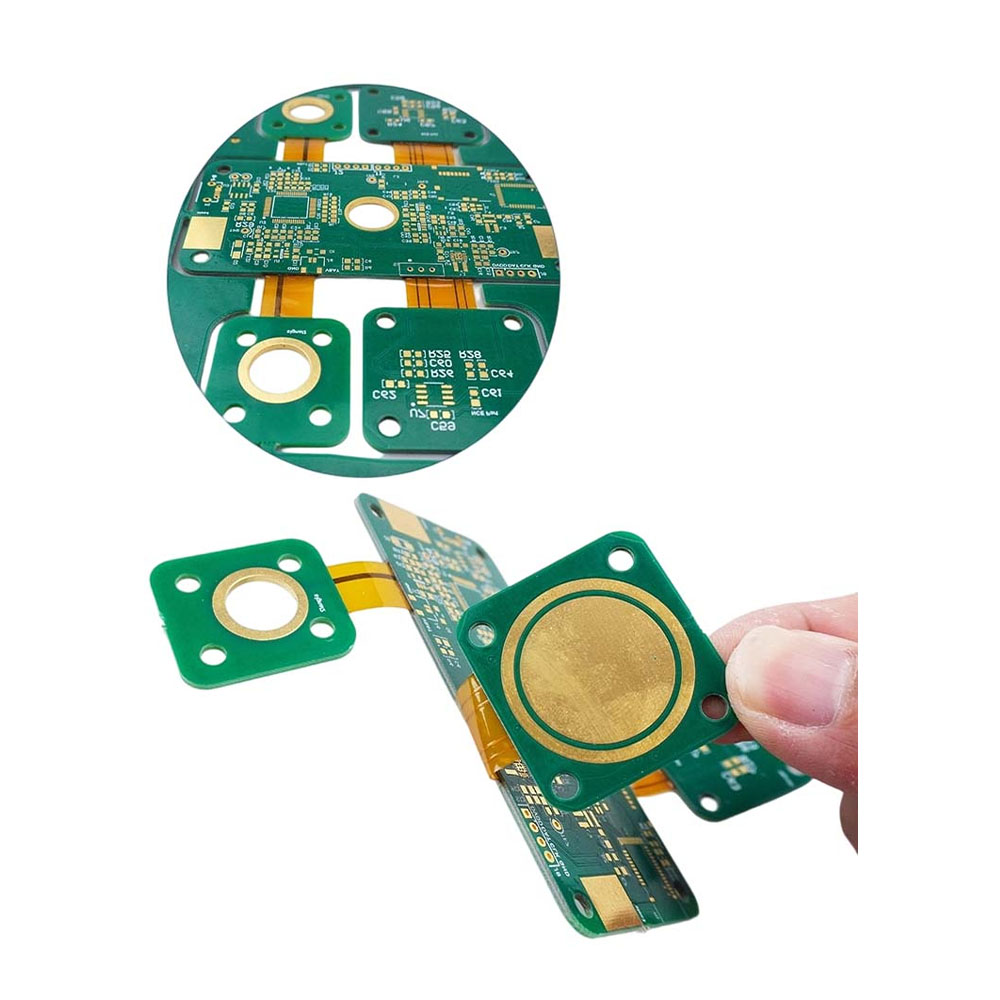

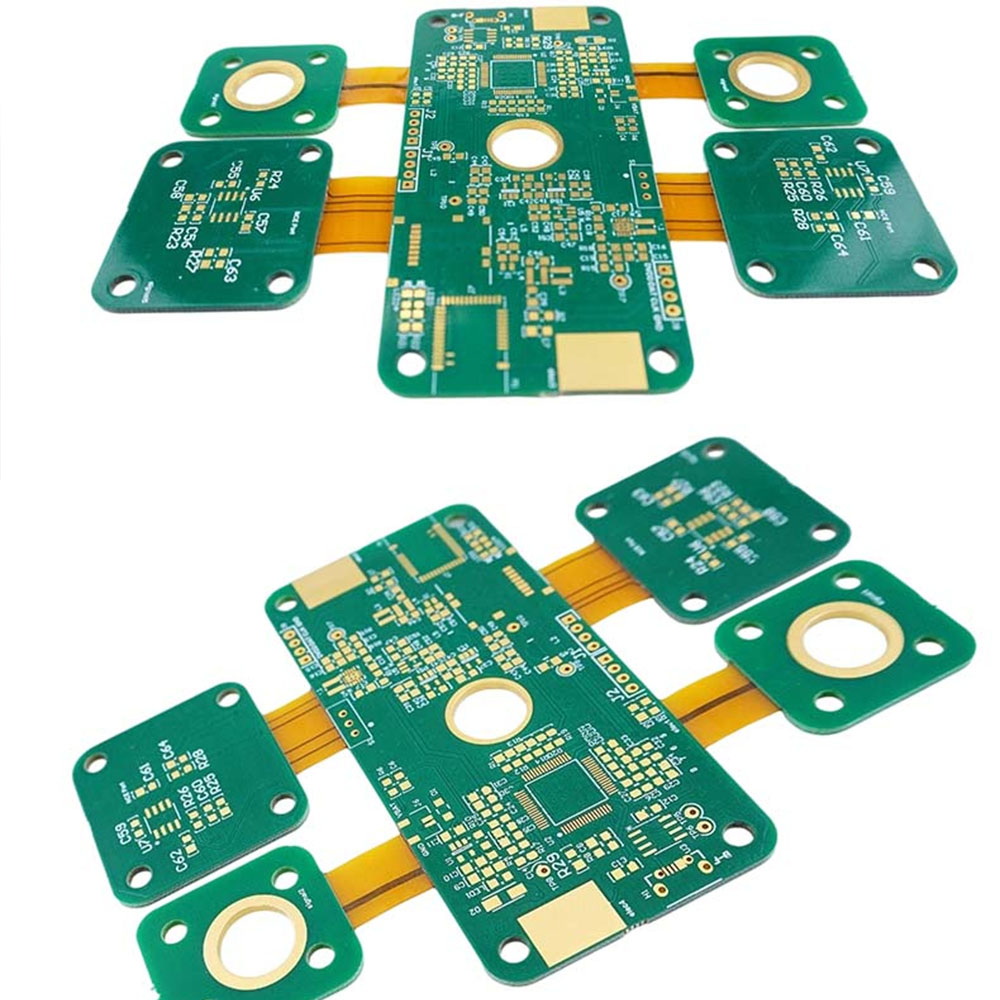

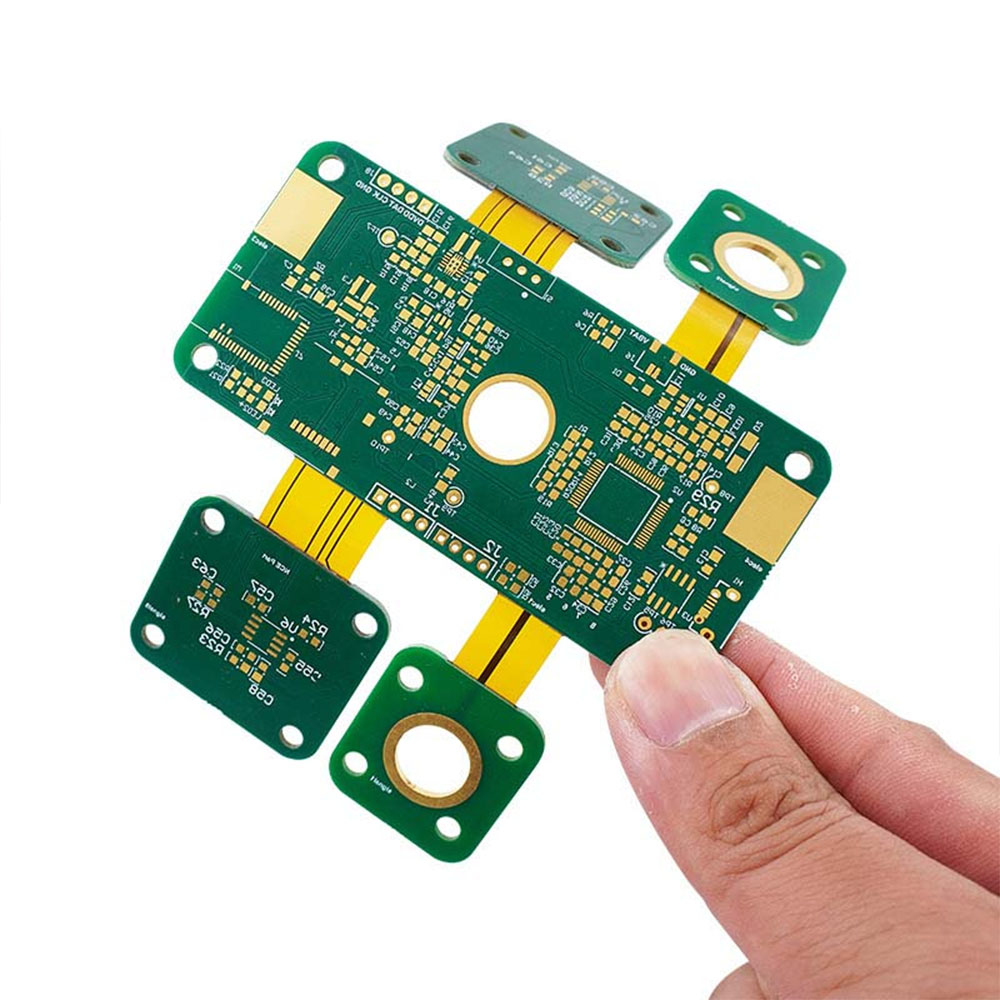

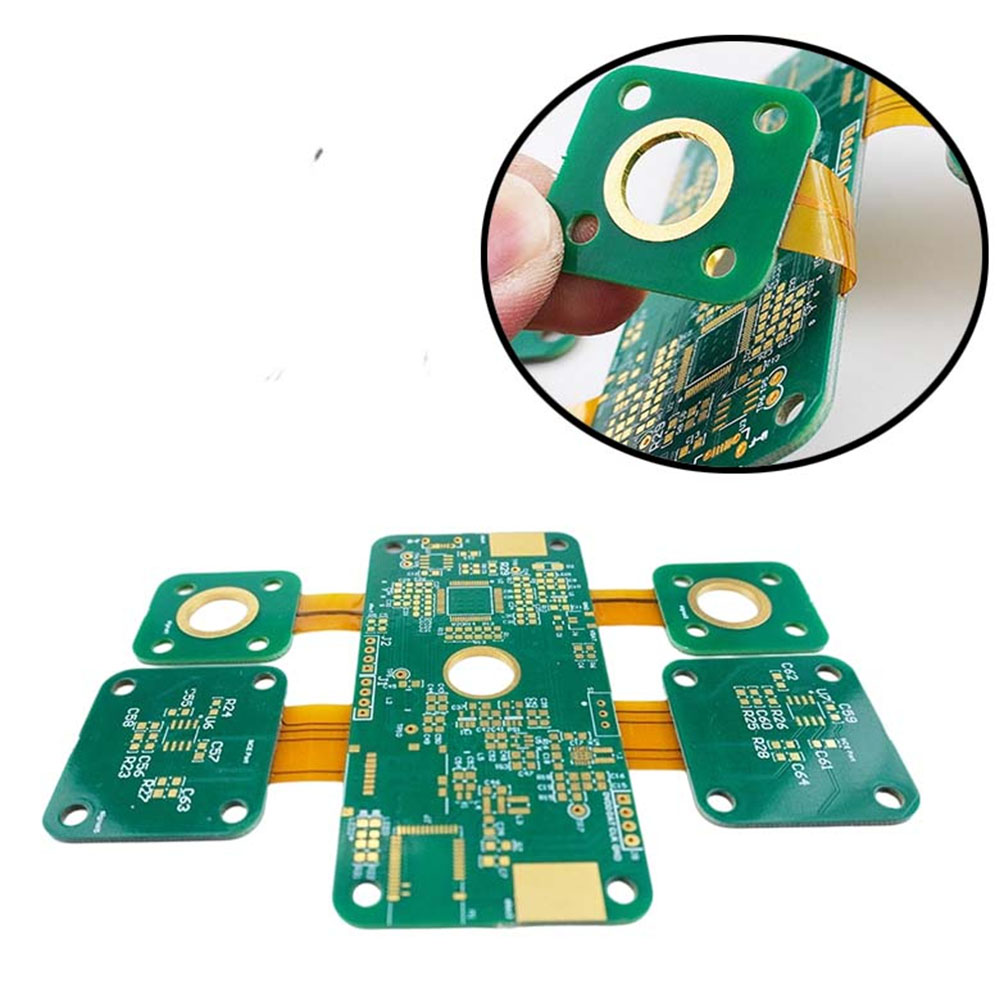

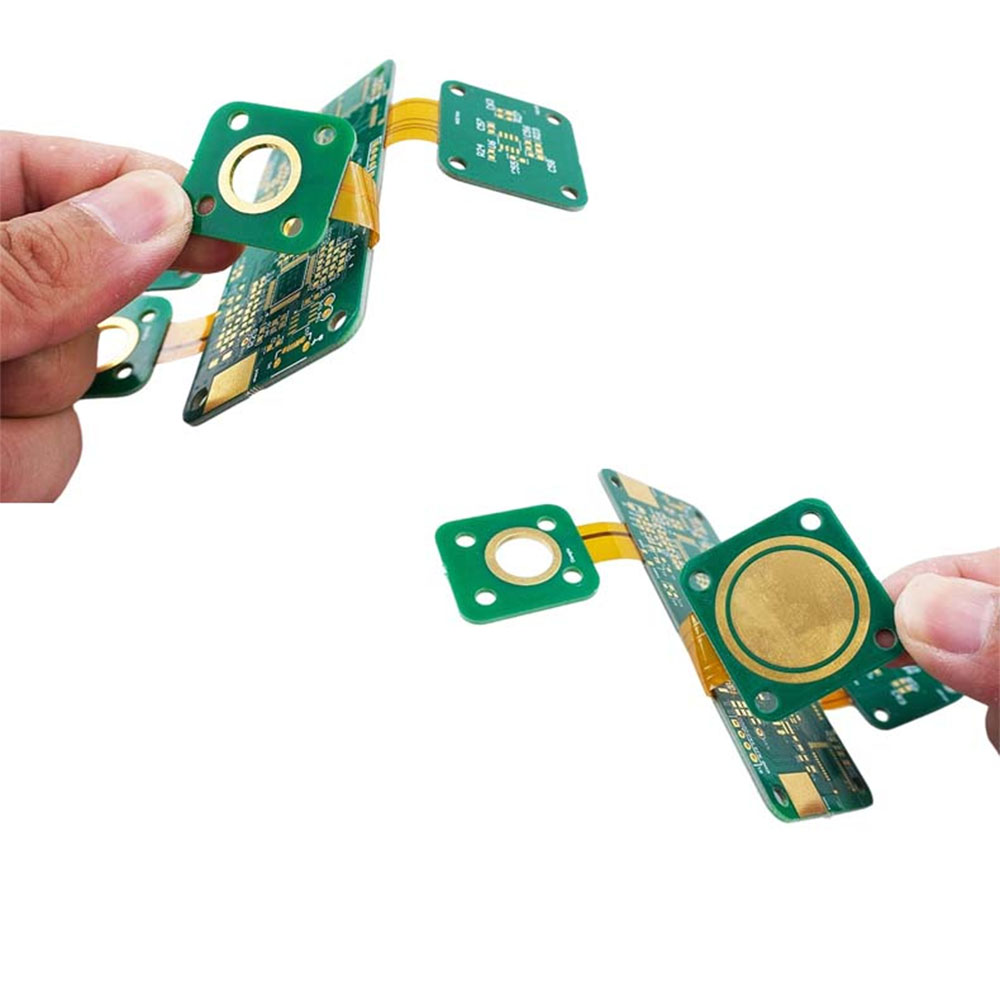

the large gold ring pads and reinforced mounting areas are a practical detail: they support secure fastening, consistent grounding, and repeated assembly without tearing the flex. the layout also shows high-density footprints and carefully spaced traces, which are typical when you need controlled routing in compact electronics such as cameras, wearable modules, medical devices, and robotics joints.

for b2b oem delivery, manufacturing can include stackup tuning for multilayer flex, coverlay control, stiffener selection, and reliability checks such as continuity, insulation, and bend-cycle evaluation. the result is a circuit that installs cleanly, stays stable under vibration, and keeps signal paths dependable in real products.
