Industrial Control PCI PCB With Multi-Port Connectors OEM

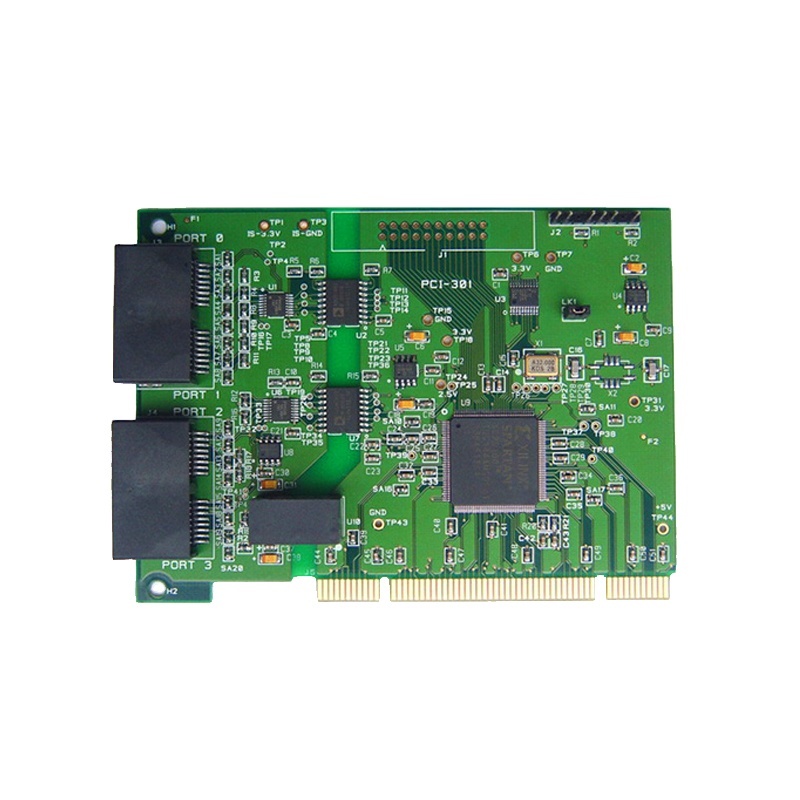

this pcb is designed to plug into a system like a dependable expansion “workhorse.” the card-edge connector provides a direct pci interface, while the multi-port connector block supports high-density external connections for sensors, networking, or machine i/o. the board layout shows dense smt placement, labeled test points, and organized power zones—details that make production testing easier and help field diagnostics stay practical.

high tg materials are a smart choice for industrial environments because they handle thermal cycling and long run times better, reducing risks like warpage and micro-cracking around solder joints. rohs compliance supports global shipment and modern assembly processes, while a one-stop oem workflow can cover schematic capture, layout optimization, stackup planning, fabrication, smt assembly, and verification.

for b2b buyers, the real value is repeatability: controlled components, stable process windows, aoi inspection, and functional testing so each batch behaves like the last. it is a strong fit for automation controllers, data acquisition systems, industrial gateways, and equipment retrofits where downtime is expensive and reliability is non-negotiable.
