High-Tg FR4 Circular PCB Assembly Manufacturer Supplier

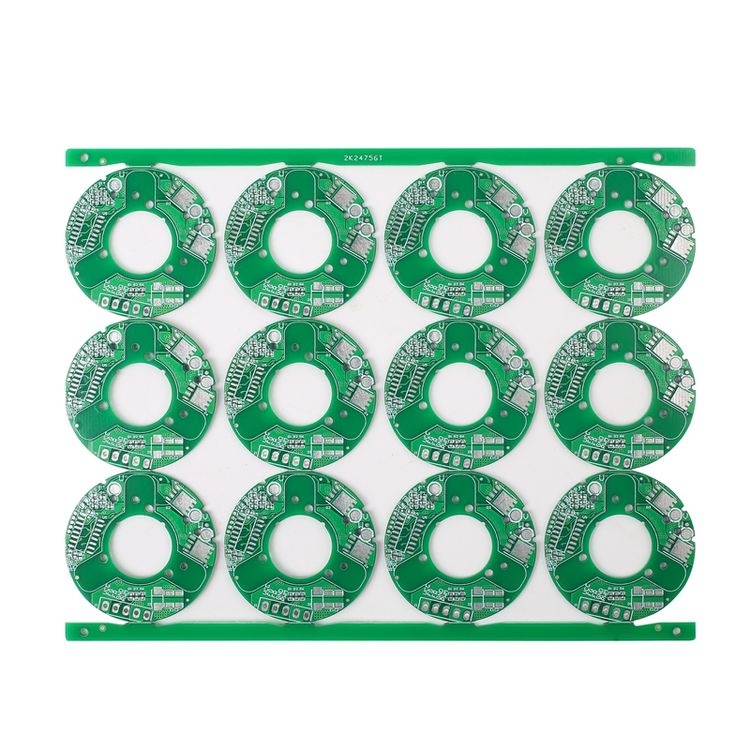

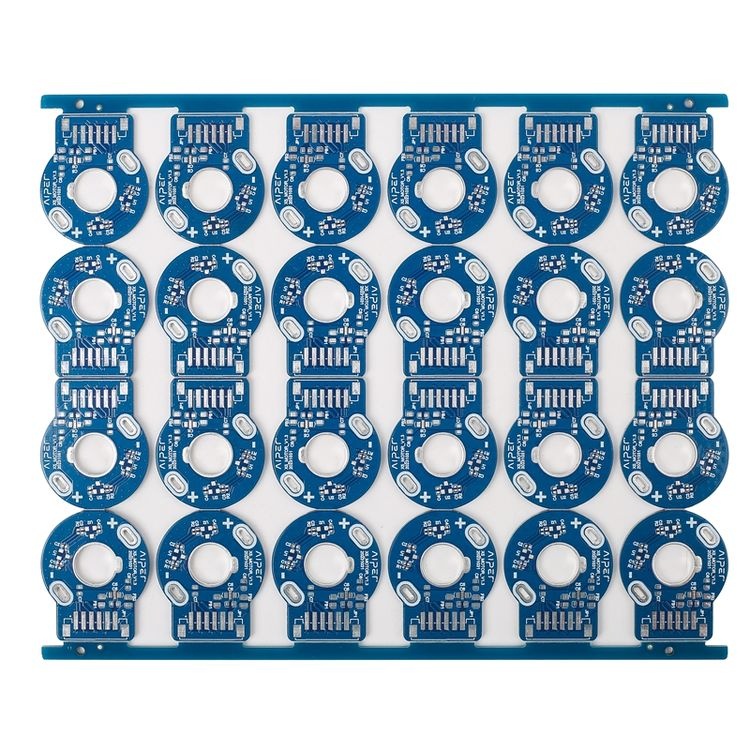

This circular ring PCB is designed for compact electronic modules where space, alignment, and thermal stability matter. Using High-Tg FR4 helps the board keep its mechanical strength and dimensional accuracy during soldering and continuous operation, reducing risks like warpage, pad lifting, and micro-cracking in demanding builds.

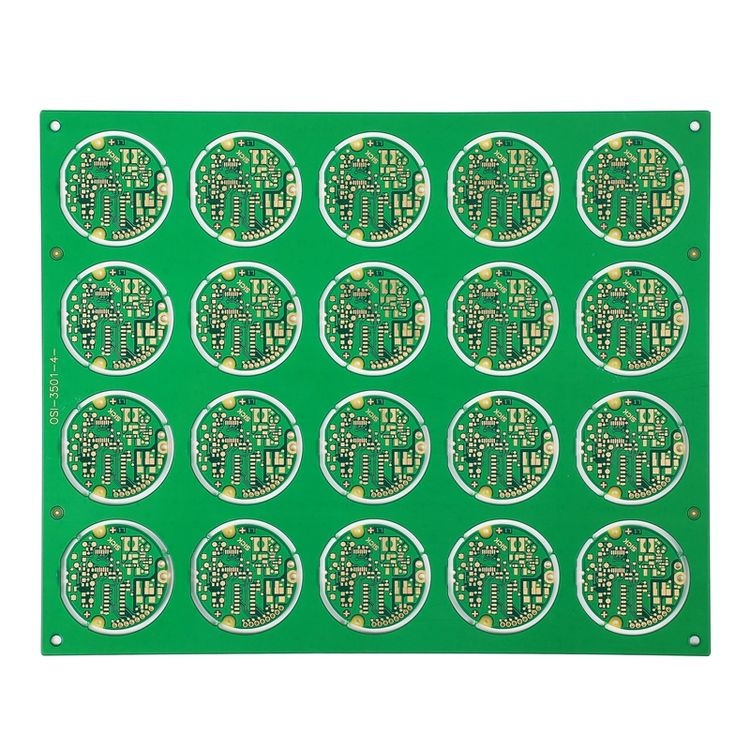

The panelized layout shown is ideal for OEM/ODM manufacturing: it speeds up pick-and-place throughput, improves consistency across batches, and lowers per-unit assembly cost. The ring geometry supports applications such as sensor housings, rotary interfaces, indicator/control modules, and other circular form-factor devices.

For assembly, the design can be supported with DFM review, controlled impedance (if required), solder mask optimization, and robust QA steps like AOI, X-ray (when applicable), and functional testing. Production can scale from prototypes to mass orders with traceability, standardized process control, and RoHS-compliant material options for global B2B supply.
