OEM Multilayer Rogers HDI PCB Mainboard Communication PCB

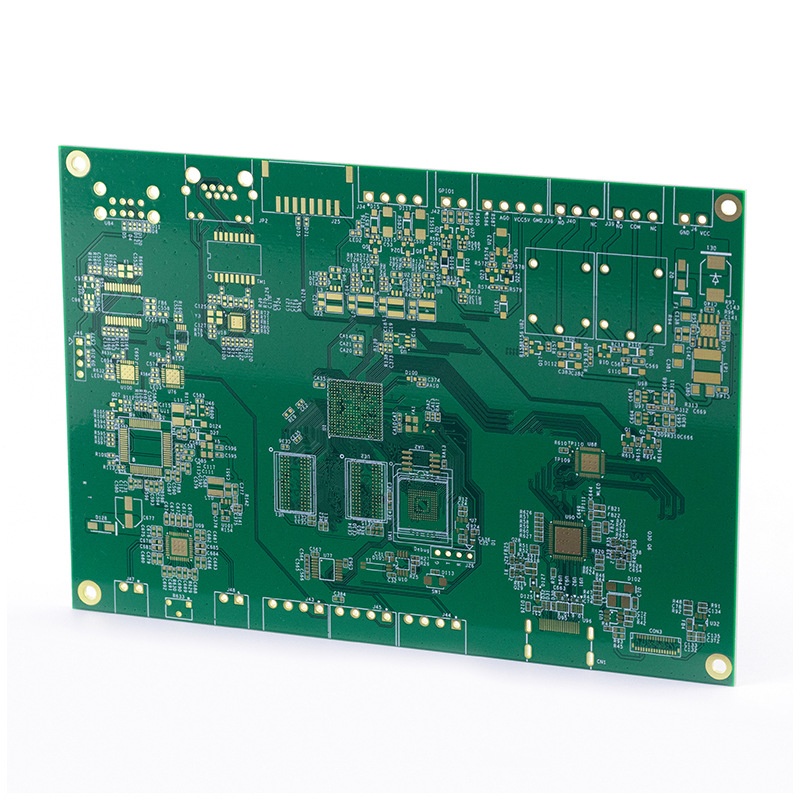

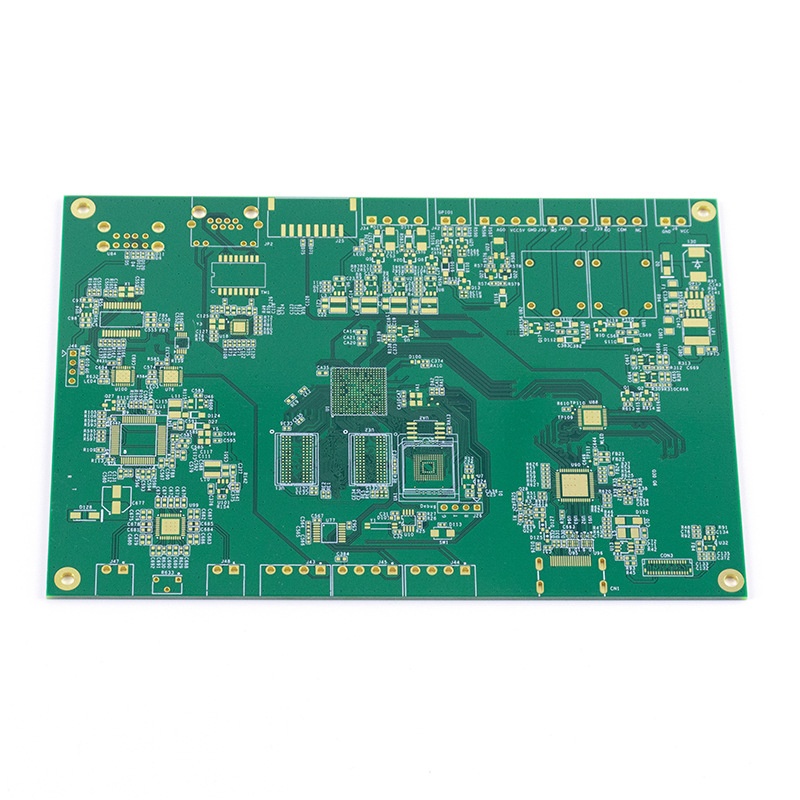

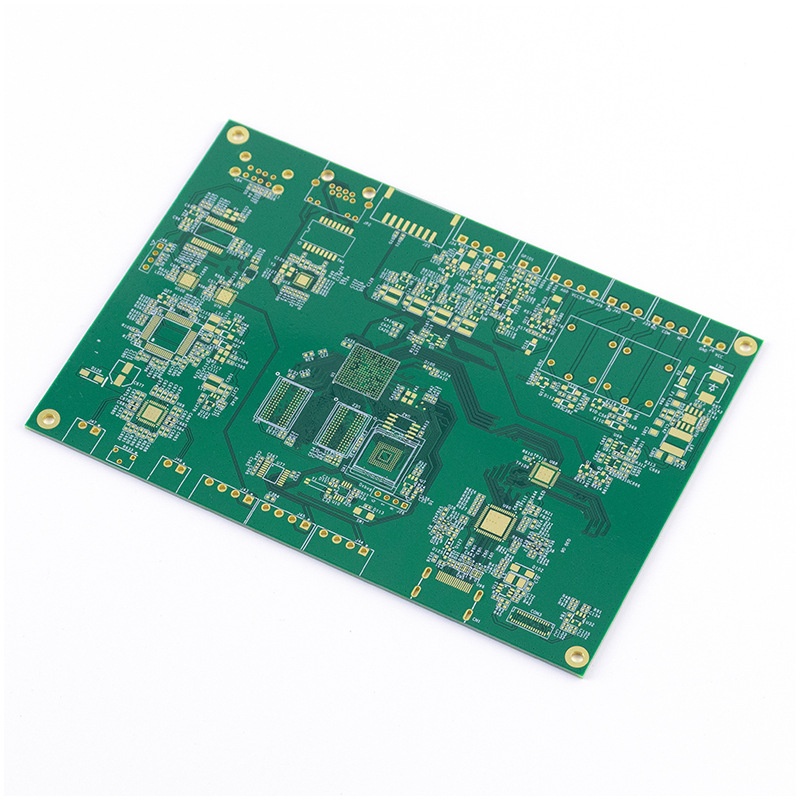

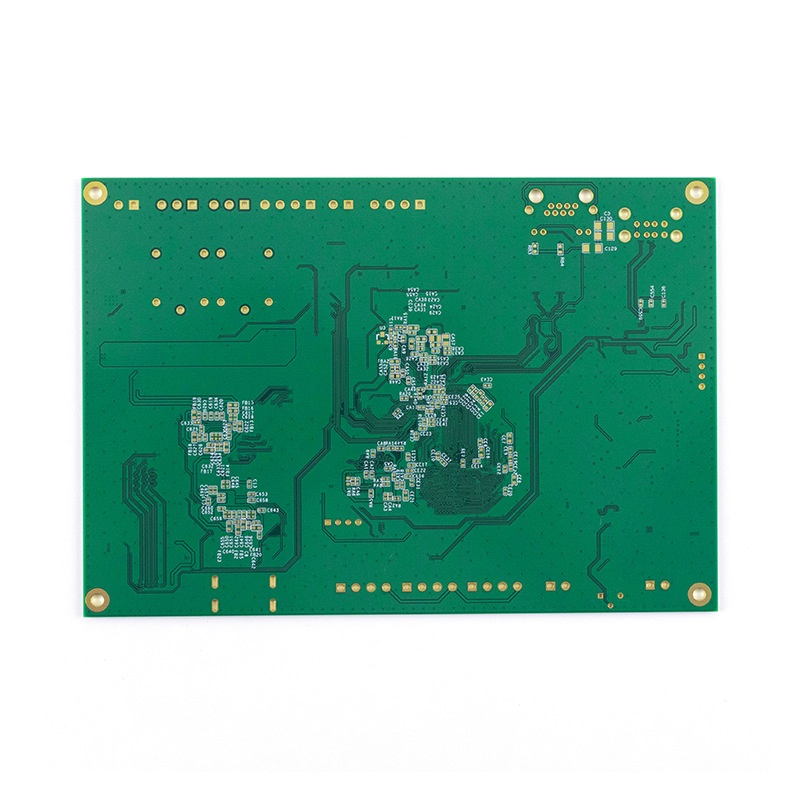

the uploaded board shows a dense, multi-zone mainboard layout with fine-pitch footprints, via fields, and gold-finished pads—typical of communication hardware where signal integrity and repeatability matter as much as raw functionality. rogers laminates are commonly selected to reduce loss and keep dielectric behavior stable for high-frequency traces, while hdi features like microvias and fine-line routing help pack more performance into a smaller footprint. as a b2b oem partner, we support stackup engineering, controlled impedance targets, and dfm checks that protect yield on complex multilayer builds. for pcb, we can manage component sourcing, smt placement on fine pitch, and inspection steps such as aoi and x-ray to verify hidden solder joints on bga or dense packages. electrical testing and functional validation can be aligned to your interface requirements so the mainboard ships production-ready, traceable, and consistent from pilot builds through volume runs.
