OEM High Thermal Conductivity IMS PCB For LED Power Modules

Heat is the silent limiter in led lighting and high-current power designs. When junction temperature rises, brightness drops, color can shift, and lifetime shortens. This insulated metal core pcb (ims pcb) is engineered to solve that problem by combining an insulating dielectric layer with a metal base that spreads heat efficiently, allowing your thermal path to stay stable under real working loads.

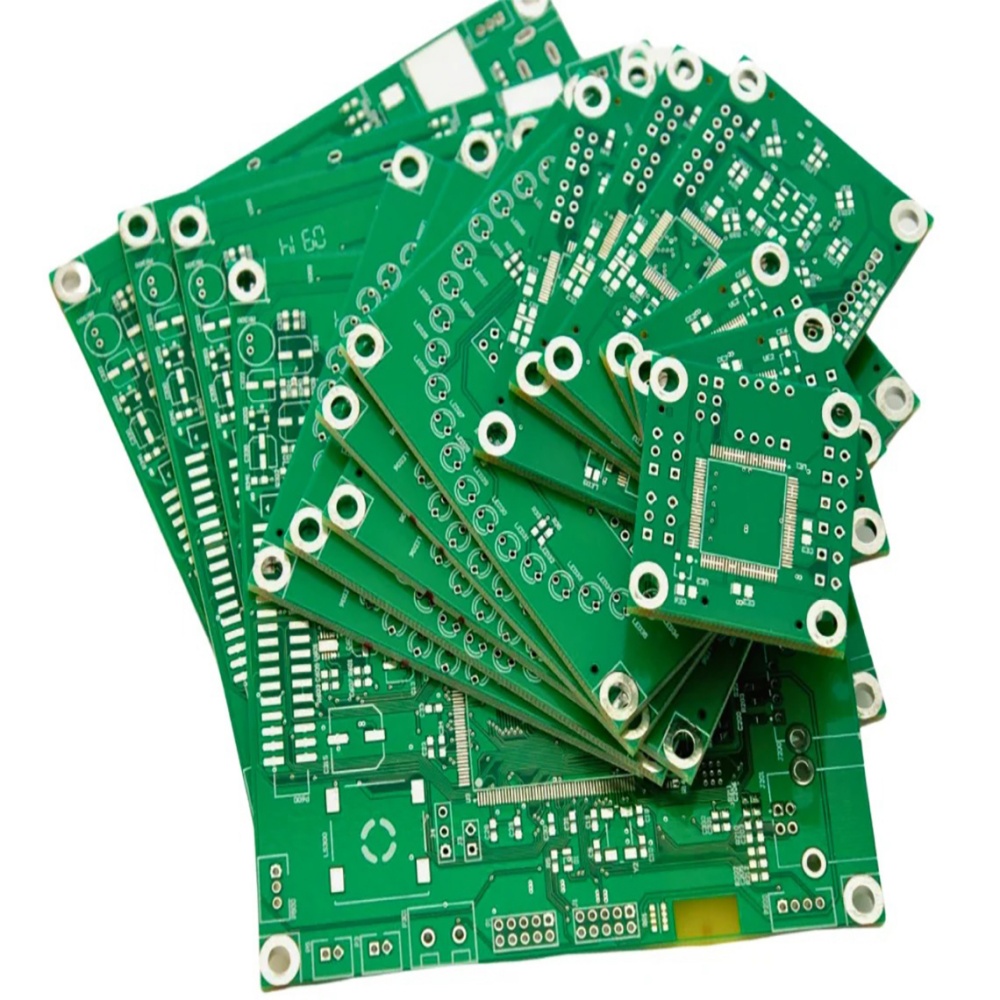

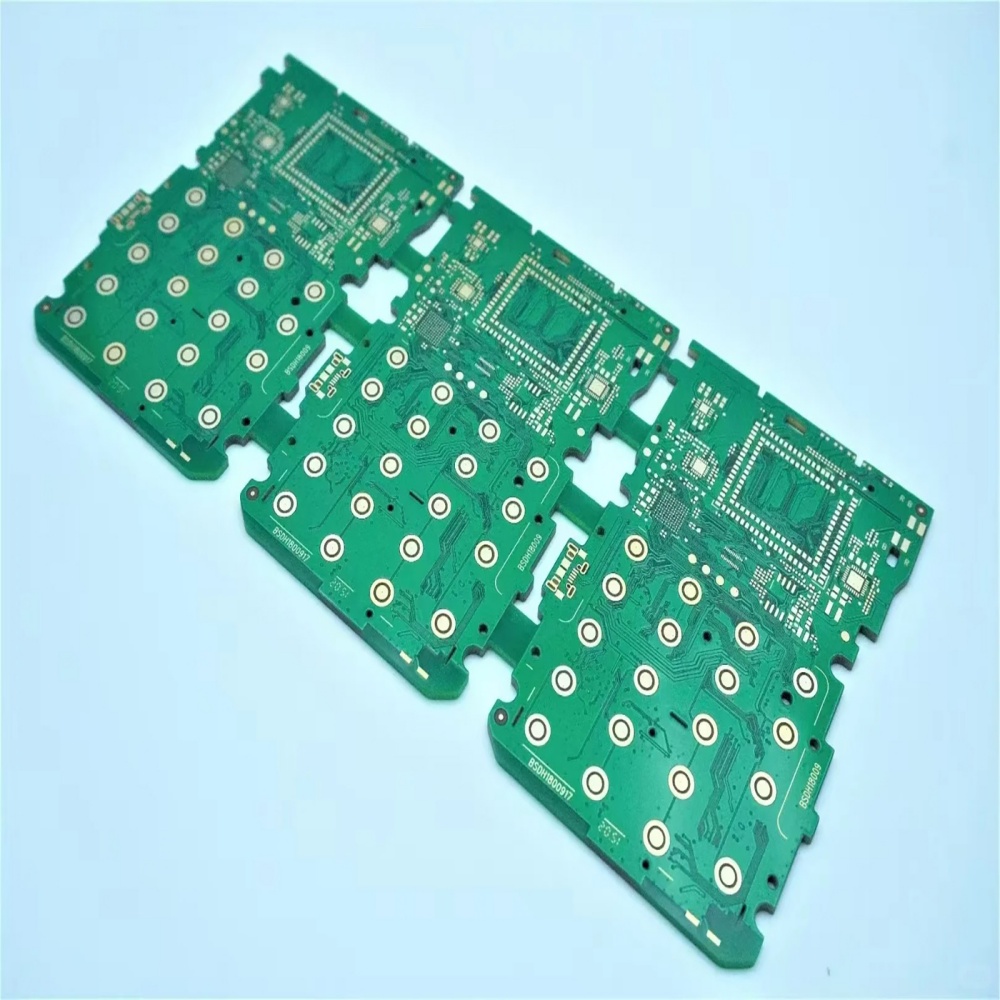

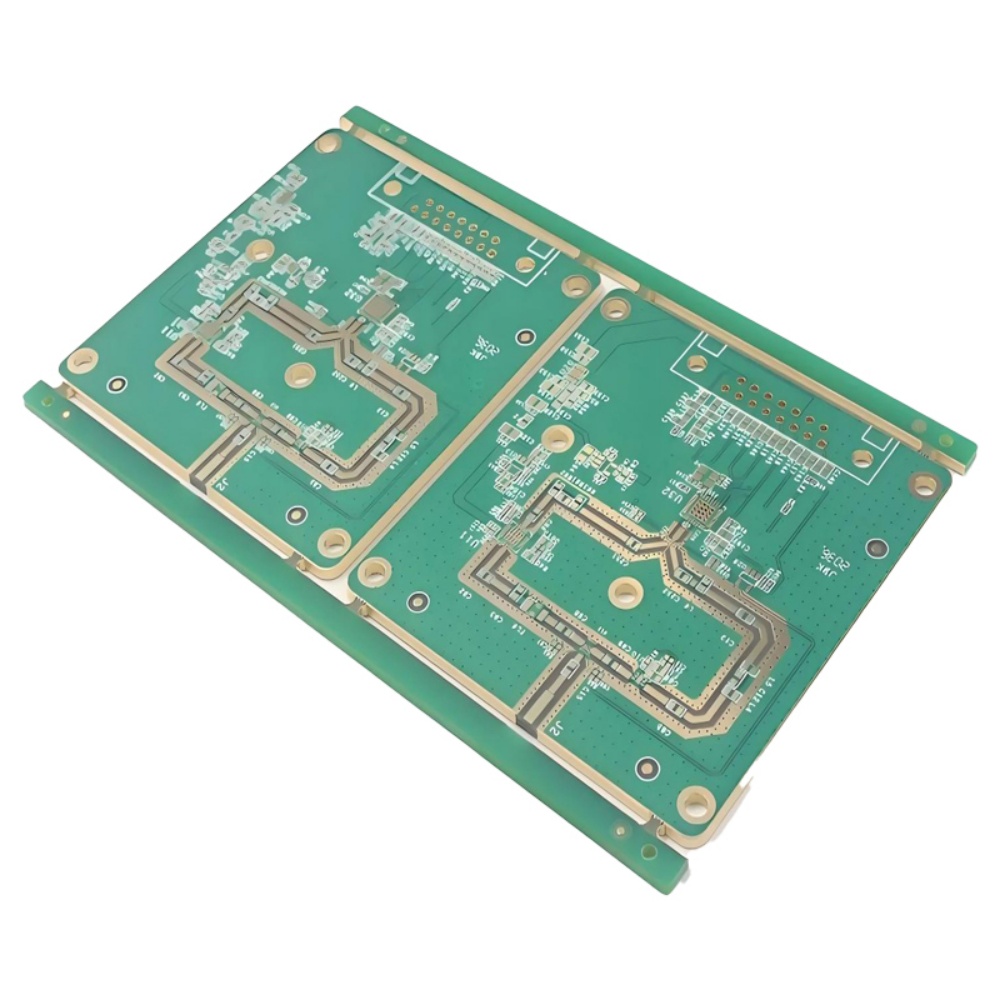

From what’s shown in the images—dense routing, large plated mounting holes, and panelized boards—this type of design is typically used for production-friendly builds where mechanical strength and thermal reliability matter. We manufacture these boards in Dongguan, China with a focus on repeatability for b2b orders, including controlled layer build, clean copper definition, and consistent surface quality.

What you gain with ims structure

• faster heat transfer: metal core helps pull heat away from hot spots and distributes it across the base

• stronger mechanical support: suitable for fixtures, housings, and vibration-prone installations

• stable led performance: improved temperature control supports lumen maintenance and longer operating life

• manufacturing consistency: processes tuned for oem batches, from prototype validation to mass production

Typical applications

• led lighting modules (indoor, outdoor, industrial)

• power conversion boards with heat-sensitive components

• drivers, regulators, and compact power modules that need dependable thermal management
