OEM Appliance Control PCB Manufacturer With LCD And Relays

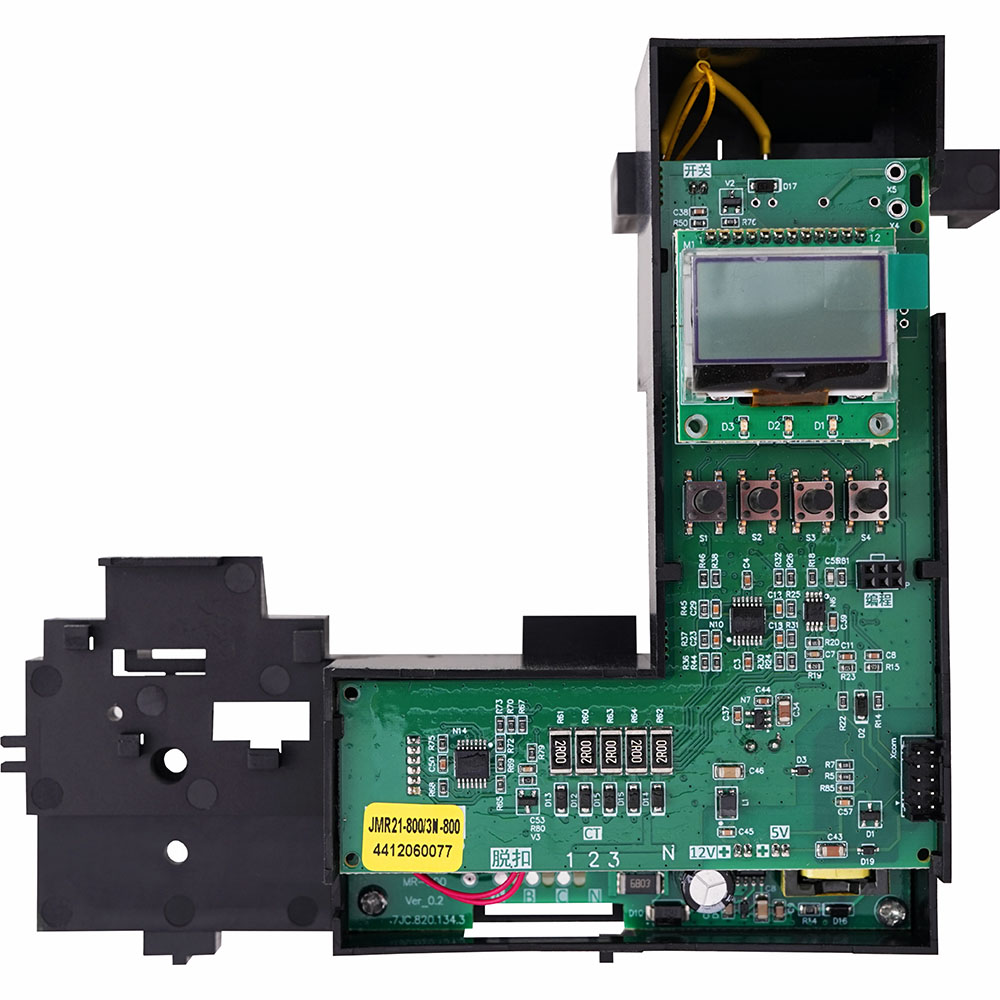

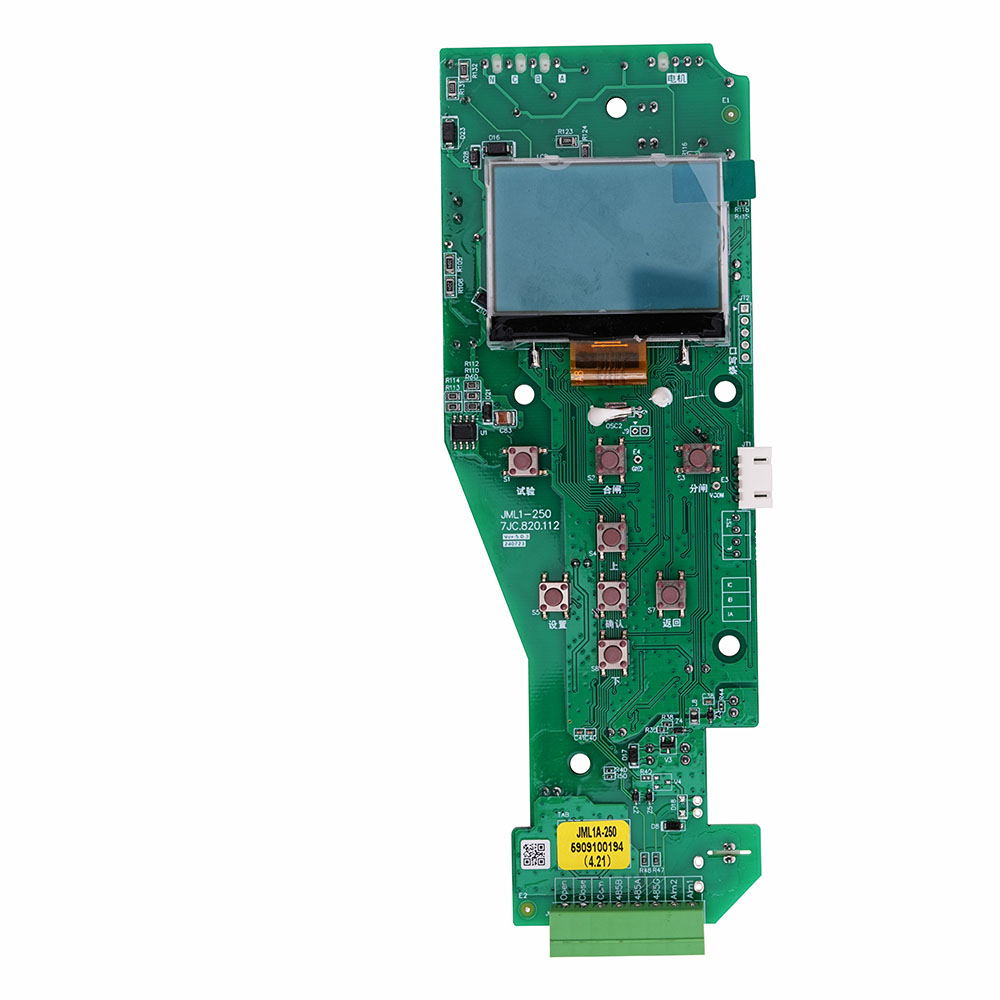

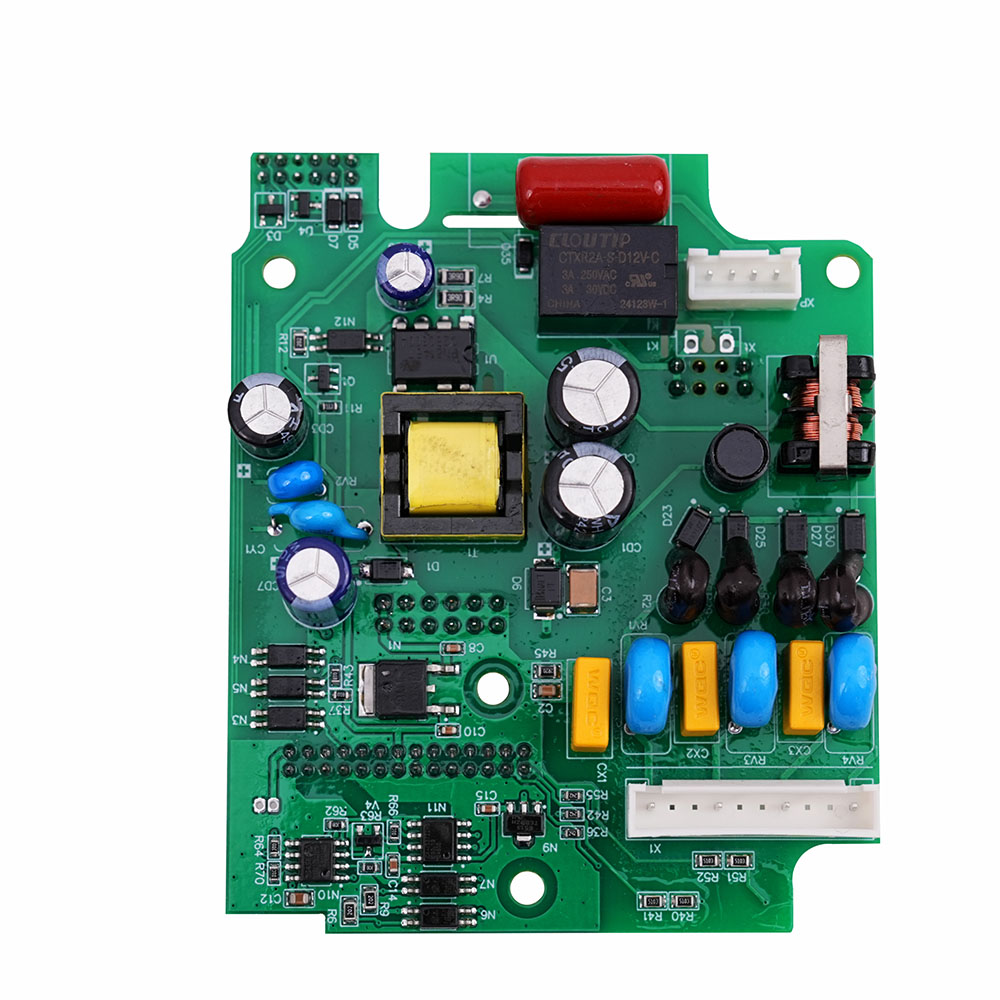

this board is built for appliances that need a clear user interface and dependable power control in one compact assembly. the image shows an lcd module for status and settings, a row of tactile buttons for direct input, and a power section with transformer, inductors, capacitors, and protection parts. that combination supports stable low-voltage logic for the ui while safely switching higher-power loads through relay outputs.

the layout reflects practical manufacturing and service needs: multiple connectors for wiring harnesses, labeled test points, and a clear separation between control and power areas to help reduce noise and improve reliability. the relay and filtering network help handle switching transients, while the regulated supply stage supports consistent operation across line fluctuations—important for long-running household and light-industrial equipment.

for b2b customers, an oem manufacturer can deliver end-to-end pcb support from schematic and layout optimization to smt and through-hole assembly, firmware programming, and functional testing. typical quality steps include aoi inspection, power-up validation, relay actuation checks, and burn-in options to catch early-life failures. the result is a scalable control board solution that moves smoothly from prototype builds into stable mass production with repeatable performance.
