Custom USB Interface Control PCB Module OEM Supplier Maker

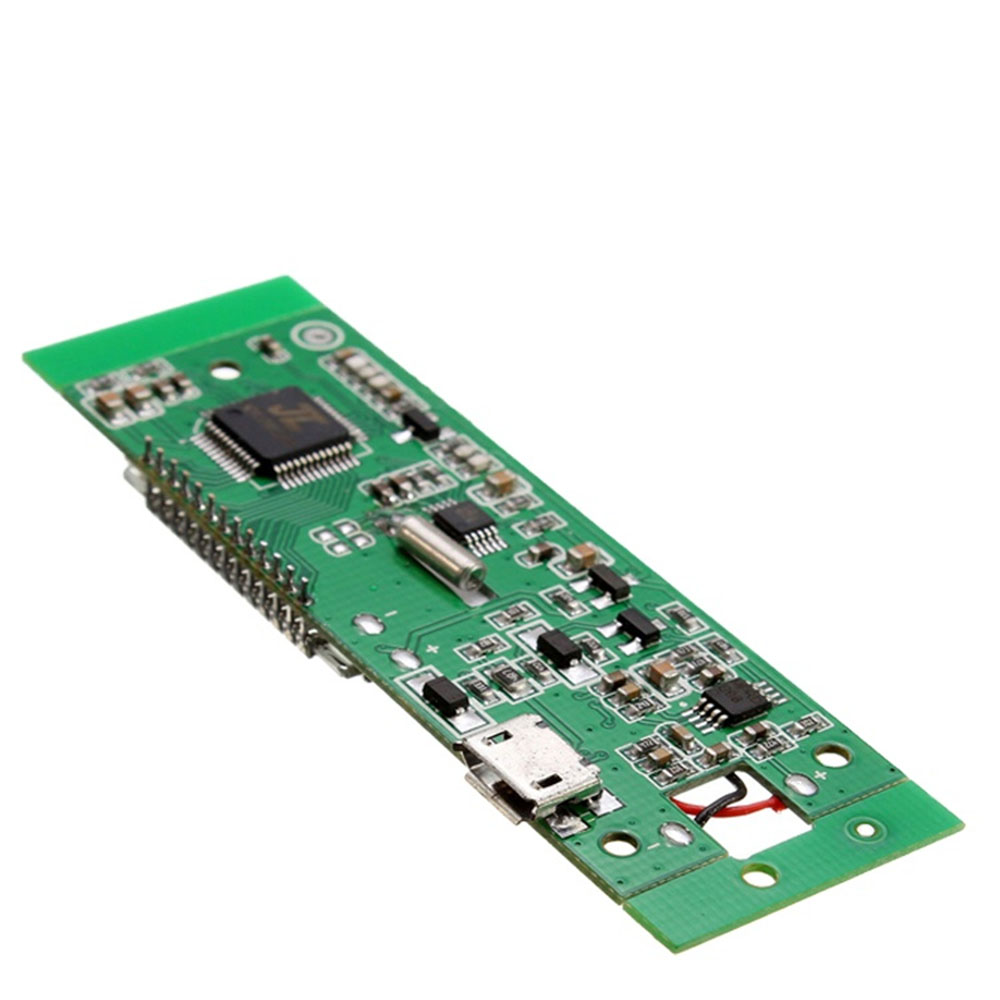

this slim pcb is built like a practical “bridge board” for connecting systems. the usb connector provides an easy service and data interface, while the pin header row supports quick integration into a larger motherboard, adapter, or test fixture. the onboard mcu and crystal oscillator point to timing-sensitive control tasks—useful for protocol handling, signal conversion, or simple device management.

the component placement is optimized for smt production: small passives are tightly grouped, and the power and signal paths are kept short to reduce noise. mounting holes and labeled polarity areas help with mechanical alignment and safer wiring during installation.

for b2b supply, china pcb manufacturing can cover pcb fabrication, smt placement, selective dip where needed, aoi inspection, and functional testing. the result is a repeatable module that moves cleanly from prototype to volume, supporting products like tv interface adapters, converter boards, and custom embedded accessories.
