Copper Weight Impact on Metal Core Thermal Performance

Copper lies.

Not because copper is weak, but because buyers often give it credit for thermal performance that actually comes from the dielectric layer, aluminum base, copper layout, component footprint, solder coverage, assembly quality, and the heat sink sitting under the finished PCB. So when somebody says, “Use 2 oz copper, the thermal issue is solved,” I immediately know the project needs a second look.

Why?

Because in a Metal Core PCB, copper weight is only one actor in a very crowded thermal crime scene.

We have seen this pattern many times in LED lighting, power modules, automotive control products, charging devices, and compact industrial electronics. The buyer asks for 2 oz or 3 oz copper because the product gets hot. The engineer sends Gerber files. The factory quotes higher. Everyone feels safer. But they were all wrong,the thick copper didn’t provide much improvement, and the motherboard’s operating temperature remained very high.

The truth is not polite: thicker copper can reduce resistance and improve lateral heat spreading, but it cannot rescue a poor thermal path. If the dielectric is thick, low-conductivity, or poorly matched to the heat source, the copper layer becomes expensive decoration.

That is why copper weight decisions in MCPCB thermal performance should not start with “1 oz or 2 oz?” They should start with a colder question: where exactly is the heat blocked?

Copper Weight Is Not Thermal Performance

PCB copper weight usually refers to copper mass per square foot. In actual factory production processes, 1 oz copper is about 35 μm thick, 2 oz is about 70 μm, 3 oz is about 105 μm, and 4 oz is about 140 μm .This does not take into account the effects of other factors, such as manufacturing deviations, electroplating, etching tolerances, and final measurements.
Simple number. Messy result.

On a standard FR-4 PCB, copper thickness PCB decisions often focus on current capacity, voltage drop, trace temperature rise, and manufacturability. On a Metal Core PCB, especially aluminum PCB, the same copper decision also affects heat spreading before heat moves through the dielectric layer and into the metal base.

That sounds good. But copper does not move heat vertically into the aluminum core by itself. It mostly helps spread heat sideways from the component pad area. The heat still has to cross the dielectric layer, and that layer is usually the choke point.

This is why I dislike lazy “heavy copper PCB equals better heat dissipation” claims. It is half true, and half-truths are what make bad purchasing decisions look technical.

For comparison, an ordinary FR-4 USB interface PCB may care more about signal routing, solder mask, and standard fabrication stability. A high-power LED or MOSFET design on metal core material is different. In that case, thermal resistance, copper area, pad design, dielectric thickness, and base metal contact all start fighting for attention.

What Copper Actually Does in a Metal Core PCB

Copper has excellent thermal and electrical conductivity.This is a physical fact. The problem is where the copper sits.

In most single-sided aluminum MCPCB structures, the stackup looks like this:

Copper circuit layer
Thermally conductive dielectric
Aluminum base
Thermal interface material
Heat sink or product housing

So yes, increasing PCB copper weight from 1 oz to 2 oz gives the current more metal to travel through. It reduces I²R loss. It improves current-carrying capacity. It can reduce local hot spots when the layout gives the copper enough area to spread heat.

But here is the catch: if the trace is already wide, the current is moderate, and the component pad has limited copper pour around it, the gain from 2 oz may be smaller than the buyer expects.

I have seen buyers pay for thicker copper when the real fix was a larger thermal pad. I have seen 3 oz copper specified on LED panels where the dielectric conductivity was the real bottleneck. I have also seen engineers request heavy copper before checking whether the design could survive etching tolerance, spacing rules, solder mask registration, or assembly flatness.

Copper helps. It does not forgive.

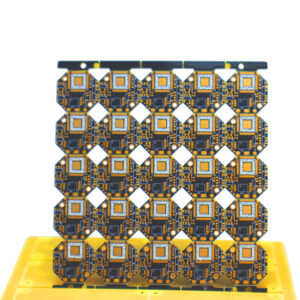

For LED lighting or thermal module designs, a double-sided aluminum LED PCB panel makes more sense as a reference point than a normal low-power FR-4 board. The thermal route is shorter, the heat load is concentrated, and copper weight becomes part of a larger heat-spreading strategy instead of a checkbox.

The Hard Truth About 1 oz, 2 oz, and 3 oz Copper

1 oz copper is not “cheap and weak.” 3 oz copper is not “premium and safe.” That thinking is amateur procurement.

A well-designed 1 oz MCPCB with a thin, high-conductivity dielectric and a wide copper pour can outperform a careless 2 oz design. A 2 oz board may be the correct balance for many LED, power supply, motor control, and automotive lighting products. A 3 oz or 4 oz board may be necessary when current density is high, voltage drop matters, or the copper itself must act as a heat spreader over a meaningful distance.

But every jump in copper weight changes production behavior.

Etching gets harder. Fine spacing gets more difficult. The copper sidewall becomes more aggressive. Solder mask coverage can become less forgiving. Cost rises. Lead time may increase. And when the PCB has dense routing, the design may need wider gaps than the engineer originally planned.

So the best copper weight for metal core PCB design is not the highest copper weight. It is the lowest copper weight that meets the current, temperature rise, mechanical, soldering, and reliability target with enough manufacturing margin.

That sentence saves money.

Copper Weight vs Dielectric Layer: Where Buyers Misread the Problem

The dielectric layer is the quiet villain in many MCPCB failures.

Buyers like to talk about copper because there aren’t such high barriers to entry when it comes to its weight. 1 oz, 2 oz, 3 oz. Clean numbers. Easy comparison. Easy quote request.

Thermal dielectric is less comfortable. You need to ask about thermal conductivity in W/m·K, dielectric thickness in μm, breakdown voltage, peel strength, glass transition behavior, and long-term thermal aging. That is where cheap MCPCB quotations start looking less cheap.

A common aluminum PCB thermal conductivity trap is this: the buyer sees “aluminum PCB” and assumes the whole structure behaves like aluminum. It does not. Heat must travel from the copper pad through the dielectric before the aluminum base does its job. If the dielectric is too thick or too low in thermal conductivity, the aluminum base is waiting under the traffic jam.

So when someone asks, “How does copper weight affect PCB thermal performance?” my answer is blunt: copper weight improves electrical current capacity and lateral heat spreading, but the dielectric layer often controls vertical thermal transfer into the metal core.

The metal core is not magic. It is just the next layer.

For more complex products, especially where heat and signal integrity appear together, the logic becomes even less forgiving. A high-frequency 6-layer PCB with ENIG pads has different priorities from an aluminum LED MCPCB. One is fighting impedance, insertion loss, and dielectric behavior at frequency. The other is fighting heat flow, current density, and mechanical contact. Mixing those design instincts without checking the actual product requirement is how buyers overspec one thing and underspec the dangerous thing.

A Practical Copper Weight Comparison for MCPCB Buyers

Copper Weight	Approx. Copper Thickness	Where It Usually Fits	Thermal Benefit	Hidden Risk
1 oz	35 μm	Standard LED modules, moderate current, cost-sensitive lighting, basic aluminum PCB	Good enough when copper area is large and dielectric is strong	Can run hot if trace width is narrow or current density is high
2 oz	70 μm	Power LED panels, automotive lighting, power control, higher current traces	Better heat spreading and lower resistance than 1 oz	Higher cost, wider spacing may be needed
3 oz	105 μm	High-current power stages, compact thermal designs, demanding MCPCB thermal performance	Stronger current handling and more lateral heat spread	Etching tolerance, solder mask coverage, and lead time become harder
4 oz+	140 μm+	Heavy copper PCB, power electronics, busbar-like PCB areas, high-current modules	Useful when copper is part of the power path and heat spreader	Expensive, slower, not friendly to fine routing

Use this table carefully. It is not a universal rule. It is a starting point for discussion with the PCB manufacturer.

And yes, if a supplier tells you “2 oz is always better,” ask them better questions.

When Heavy Copper PCB Makes Sense

Heavy copper PCB makes sense when the copper is carrying serious current, reducing voltage drop, spreading heat across a real copper area, or supporting mechanical and thermal stability in a power product.

Not before.

If the heat source is tiny and isolated, thicker copper may help only around the immediate pad unless the layout gives the heat somewhere to go. If the product has no good thermal interface to the housing, the heat still stays in the system. If the LED package, MOSFET, diode, resistor, or driver IC is placed badly, copper weight becomes a bandage.

A better decision starts with these questions:

What is the current per trace?
What temperature rise is acceptable, 10°C, 20°C, or 30°C?
What is the maximum component case temperature?
Is the heat source continuous or pulsed?
What is the dielectric thermal conductivity?
How thick is the dielectric?
Does the aluminum base contact a heat sink or just sit in air?
Is the PCB assembled with enough solder coverage under thermal pads?

I would rather see a buyer send these numbers than write “best copper weight” in the RFQ and hope the factory guesses correctly.

For early-stage engineering, a custom PCB prototype for GPS, FPGA, and LCD control products may be used to validate layout behavior, assembly fit, and basic electrical function. But when thermal load is the risk, the prototype should also include temperature measurement points. Otherwise, the first production batch becomes the real experiment, which is a very expensive way to learn physics.

The Cost Trap: Paying for Copper While Ignoring Layout

Here is my unpopular opinion: many MCPCB buyers overpay for copper because they underpay for design review.

The supplier quotes 2 oz instead of 1 oz. The buyer feels protected. However, they overlooked the most important step: they lacked a process at the production stage to check, prior to copper foil pouring, whether there were any gaps that could cause interruptions, whether there was sufficient copper to protect the heat source, whether the solder mask openings aided or hindered assembly, or whether the dielectric material was suitable for the actual power density.

In 2024 and 2025 RFQ reviews, this pattern became more visible because buyers were trying to control cost while product power density kept rising. The common request was not simply “make it cheaper.” It was “keep the same thermal performance, but reduce price and lead time.” Those two goals fight each other unless the stackup is reviewed properly.

For small and medium batch buyers, the smarter strategy is not always lower copper. It is controlled copper.

That means selecting copper weight based on actual current and heat path, then adjusting the board outline, copper area, dielectric, surface finish, and assembly process around that decision. Sometimes 1 oz is enough. Sometimes 2 oz is the safest commercial balance. Sometimes 3 oz is justified. But I need evidence before I believe it.

This is also where surface finish can matter. For dense pads, fine components, or demanding solderability, an immersion gold HDI multilayer PCB panel is a different manufacturing conversation from a heavy copper aluminum board. ENIG can help solderability and pad protection, but it does not replace thermal design. Buyers often mix these topics because both sound “high-end.” They are not the same problem.

What I Would Ask Before Quoting a Metal Core PCB

If I were reviewing your Metal Core PCB project, I would not start by asking only for Gerber files. I would ask for the product condition.

That sounds annoying. It is useful.

For a serious MCPCB quote, especially for aluminum PCB thermal conductivity decisions, the factory should understand:

Power per component
Total PCB power load
Continuous or intermittent operation
Target operating temperature
Copper weight request
Dielectric thermal conductivity
Aluminum base thickness
Board thickness target
Surface finish
Solder mask color
Assembly method
Heat sink or housing contact
Annual quantity and prototype quantity

Without that, the quote may be fast, but not intelligent.

For example, a buyer may request 2 oz copper because the product uses high-power LEDs. Fine. But if the aluminum base is 1.5 mm, dielectric is too thick, and the product housing has poor contact, the copper upgrade may not deliver the expected temperature drop.

So the right question is not “Can you make 2 oz MCPCB?”

The right question is “Will 2 oz solve the thermal problem in this specific structure?”

Very different.

Copper Weight Is a Design Decision, Not a Sales Feature

The best copper weight for metal core PCB production should be chosen by current density, heat source size, copper area, dielectric performance, production tolerance, and cost target.

That is the grown-up answer.

A 1 oz Metal Core PCB may be enough for many LED and moderate-power products when the layout is generous and the thermal dielectric is suitable. A 2 oz MCPCB is often a practical middle ground for higher current and better heat spreading. A 3 oz or heavier copper design should be justified by current, voltage drop, local heat density, or product reliability needs.

But the wrong 3 oz board can still be worse than the right 1 oz board.

So if you are buying MCPCB for lighting, power supply, automotive electronics, charging products, industrial control, or heat-sensitive modules, do not let copper weight become the only technical conversation. Ask about dielectric. Ask about spacing. Ask about manufacturability. Ask about assembly. Ask about real operating temperature.

And if the supplier cannot explain the trade-off, you are not getting engineering support. You are getting a price list.

FAQ

What is the best copper weight for a Metal Core PCB?

The best copper weight for a Metal Core PCB is the lowest copper thickness that safely meets current capacity, acceptable temperature rise, voltage drop, heat spreading, soldering reliability, and manufacturing tolerance requirements without adding unnecessary cost or process risk. For many aluminum PCB projects, 1 oz or 2 oz is more practical than automatically choosing 3 oz.

In real projects, I usually treat 2 oz copper as the first serious review point for higher-power LED and power control designs. But I would still check trace width, pad area, dielectric thermal conductivity, and heat sink contact before approving it.

How does copper weight affect PCB thermal performance?

Copper weight affects PCB thermal performance by increasing copper thickness, reducing electrical resistance, lowering I²R heat generation, and improving lateral heat spreading around component pads and traces before heat moves through the dielectric layer into the metal core. It helps most when the layout provides enough copper area for heat to spread.

The mistake is expecting copper to fix vertical thermal transfer by itself. In MCPCB thermal performance, the dielectric layer and aluminum base contact often decide whether the heat can actually leave the circuit area.

Is 2 oz copper always better than 1 oz copper on aluminum PCB?

2 oz copper is not always better than 1 oz copper on aluminum PCB because its real value depends on current density, trace width, copper pour area, dielectric thermal conductivity, operating temperature, and production tolerance. It can improve heat spreading and current capacity, but it also increases cost and manufacturing difficulty.

If your traces are already wide and the heat path is limited by the dielectric layer, moving from 1 oz to 2 oz may bring less benefit than expected. Sometimes changing dielectric material or pad design is smarter.

Does aluminum PCB thermal conductivity matter more than copper thickness?

Aluminum PCB thermal conductivity can matter more than copper thickness when the main thermal bottleneck is vertical heat transfer through the dielectric layer and into the metal base rather than lateral spreading across the copper layer. Copper helps distribute heat, but dielectric material and thickness often control the actual path to the aluminum core.

This is why buyers should not compare MCPCB only by copper weight. A 2 oz copper PCB with weak dielectric performance can lose against a better-designed 1 oz structure.

When should I choose heavy copper PCB for MCPCB design?

Heavy copper PCB should be chosen for MCPCB design when the product has high current, strict voltage drop limits, concentrated heat sources, larger thermal spreading needs, or reliability requirements that justify thicker copper despite higher cost and tougher fabrication rules. It should not be chosen only because the product feels “high power.”

For dense layouts, heavy copper can create spacing and etching challenges. Before choosing 3 oz or 4 oz copper, confirm whether the layout can support the required clearance, solder mask behavior, and final inspection standard.

What files and data should I send for a reliable MCPCB quote?

For a reliable MCPCB quote, send Gerber files, drill files, BOM if assembly is needed, copper weight, base material request, dielectric thermal conductivity, aluminum thickness, surface finish, quantity, lead time, product power load, operating temperature target, and heat sink or housing contact details. These details help the factory quote the real design, not just the outline.

If you only send Gerber files and ask for “best price,” the supplier can still quote. But the quote may miss the thermal risk that decides whether the PCB works in the final product.

Conclusion

If your Metal Core PCB project is running hot, do not start by guessing copper weight. Send the stackup, Gerber files, power condition, and target temperature. We can review whether 1 oz, 2 oz, or heavier copper is actually needed, and whether the real bottleneck is copper, dielectric, layout, or assembly.
